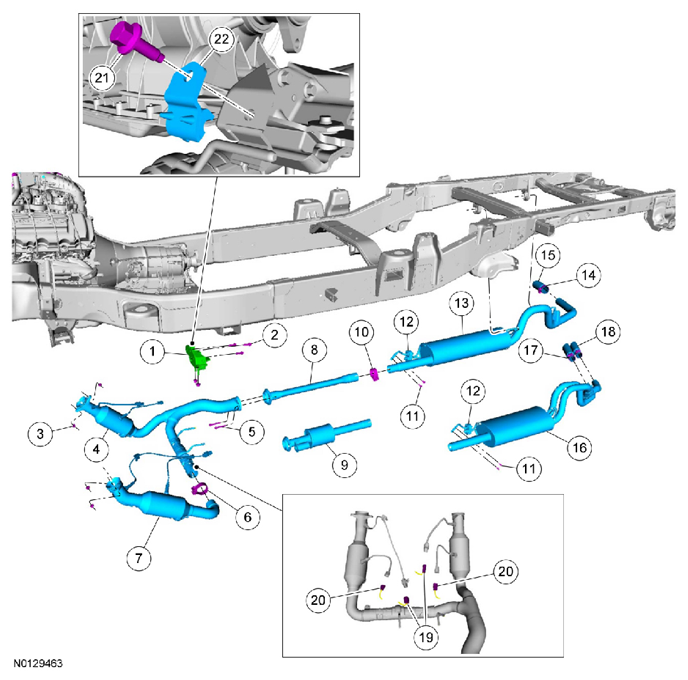

Exhaust System - Exploded View

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: 2-Wheel Drive (2WD) shown in illustration, Four-Wheel Drive (4WD) similar.

NOTE: Exhaust system may vary by engine and wheelbase.

NOTE: Vehicle body removed from art for clarity.

Item	Part Number	Description
1	6068	Transmission insulator and retainer/exhaust support bracket assembly
2	W711140	Transmission insulator and retainer/exhaust support bracket assembly bolt (3 required) - 90 Nm (66 lb-ft)
3	W520514	Exhaust Y-pipe dual catalytic converter-to-exhaust manifold or turbocharger nut (4 required)
4	5E212	RH catalytic converter
5	W714717	Exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt (2 required)
6	5A231	RH catalytic converter-to-LH catalytic converter Torca® clamp - 55 Nm (41 lb-ft)
7	5E212	LH catalytic converter
8	5A212	Exhaust intermediate pipe
9	5A212	Exhaust intermediate pipe with resonator (if equipped)
10	-	Exhaust intermediate pipe Torca® clamp (part of 5A212) - 47 Nm (35 lb-ft)
11	W712773	Front muffler isolator and bracket assembly bolt (2 required) - 30 Nm (22 lb-ft)
12	5B245	Front muffler isolator and bracket assembly
13	5230	Muffler
14	-	Exhaust tip assembly Torca® clamp (part of 5C262) - 47 Nm (35 lb-ft)
15	-	Exhaust tip (part of 5C262)
16	5K214	Muffler (SVT Raptor and Harley Davidson® models only)
17	-	Exhaust tip assembly Torca® clamp (part of 5C262) (2 required) - 47 Nm (35 lb-ft)
18	-	Duel exhaust tip assembly (part of 5C262) (SVT Raptor and Harley Davidson® Models only)
19	-	Heated Oxygen Sensor (HO2S) electrical connectors (part of 12B637) (2 required)
20	-	Catalyst Monitor Sensor (CMS) electrical connectors (part of 15525) (2 required)
21	W713314	LH isolator cap bolt - 55 Nm (41 lb-ft)
22	5A262	LH isolator cap

Refer to the appropriate procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
