Engine Ignition Components - Exploded View
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

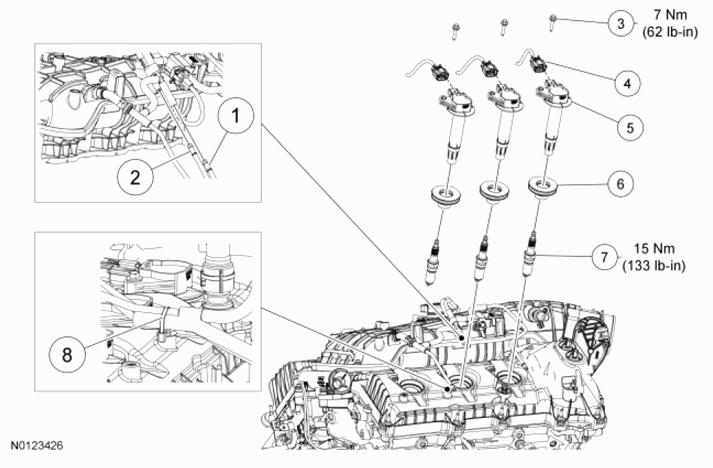

Ignition Components RH Side
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Turbocharger regulator hose part of (9961) |
| 2 | - | Turbocharger regulator hose part of (9961) |
| 3 | W714507 | Ignition coil-on-plug bolt (3 required) |
| 4 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) |
| 5 | 12029 | Ignition coil-on-plug (3 required) |
| 6 | 12025 | Coil-on-plug seal (3 required) |
| 7 | 12405 | Spark plug (3 required) |
| 8 | - | Tie strap |
NOTE:

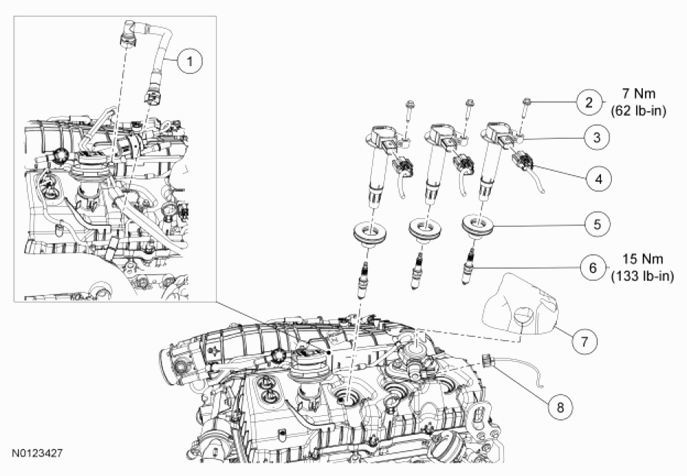

Ignition Components LH Side
| Item | Part Number | Description |
|---|---|---|
| 1 | 6758 | Crankcase vent tube assembly |
| 2 | W714507 | Ignition coil-on-plug bolt (3 required) |
| 3 | 12029 | Ignition coil-on-plug (3 required) |
| 4 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) |
| 5 | 12025 | Coil-on-plug seal (3 required) |
| 6 | 12405 | Spark plug (3 required) |
| 7 | 6N041 | Fuel injection pump noise insulator shield |
| 8 | - | Fuel injection pump electrical connector (part of 12A581) |
- Refer to the appropriate procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
