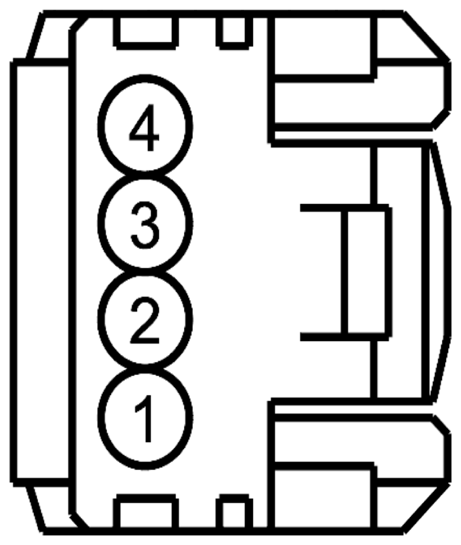

Front Controls Interface Module (FCIM) Connector End View (C2402)

Fig 1: Identifying Front Controls Interface Module Connector (C2402)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP09 (RD)	20	FUSE - 9 OR CIRCUIT BREAKER
2	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
3	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	GD133 (BK)	20	GROUND - PILLAR A LEFT

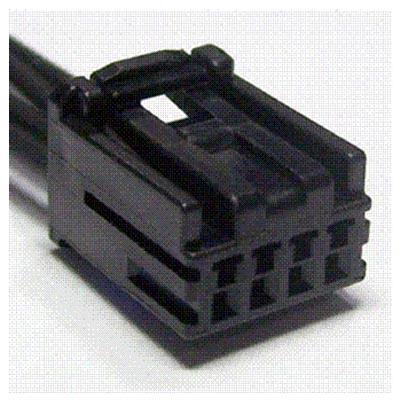

Available Pigtail Kits
Pigtail Kit Part Number WPT-1102	Service Part Number: AU2Z-14S411-BAA  Gauge: 20  Pin material: Tin  Cavities: 4  Vehicle Uses Module - Front Interface
