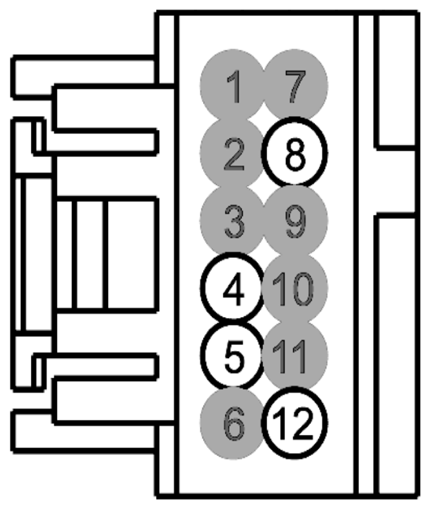

Front Display Interface Module (FDIM) Connector End View (C2407)

Fig 1: Identifying Front Display Interface Module Connector (C2407)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
5	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
6	*	*	Not Used
7	*	*	Not Used
8	GD133 (BK)	20	GROUND - PILLAR A LEFT
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	SBP09 (RD)	22	FUSE - 9 OR CIRCUIT BREAKER

Available Pigtail Kits

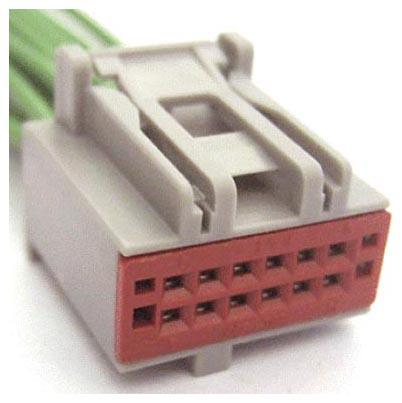

Pigtail Kit Part Number WPT-949	Service Part Number: 3U2Z-14S411-BMAB  Gauge: 18  Pin material: Silver  Cavities: 12  Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety

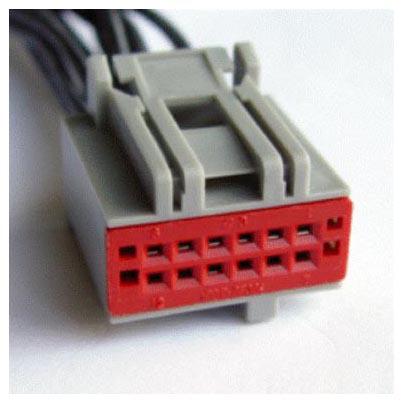

Pigtail Kit Part Number WPT-760	Service Part Number: 3U2Z-14S411-BMAA  Gauge: 18  Pin material: Tin  Cavities: 12  Vehicle Uses Coil - Ignition Lamp - Storage Compartment - Trunk Mirror - Rearview Module - Heated Seat (Rear)
