Steering Wheel: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

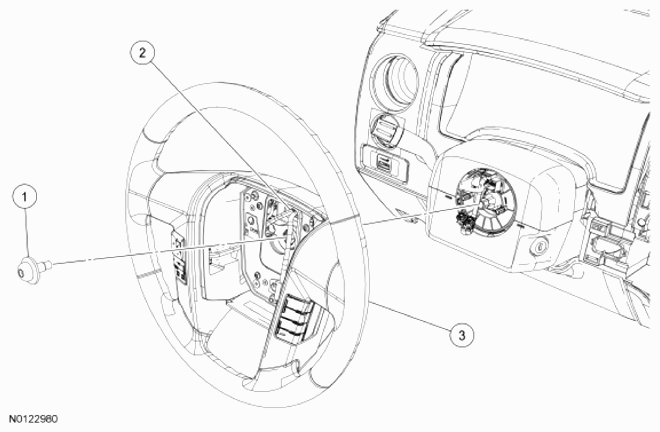

Fig 1: Identifying Steering Wheel Components
G09538917Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W709344 Steering wheel bolt
2 - Steering wheel switches electrical connector (part of 3600)
3 3600 Steering wheel
