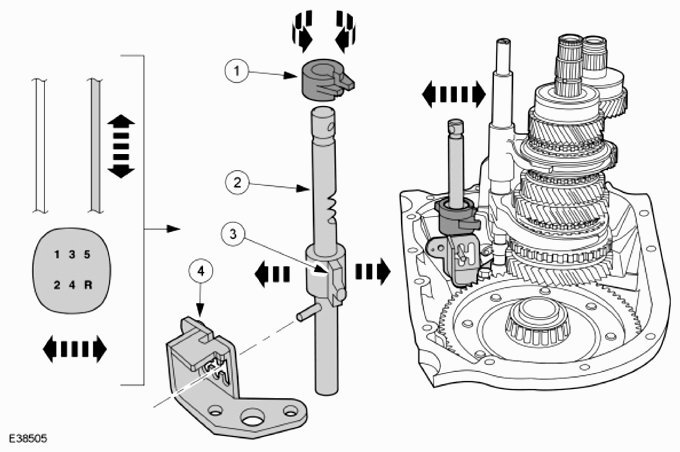

Select Movement
| Item | Description |
|---|---|
| 1 | Shift locking bush |
| 2 | Selector shaft |
| 3 | Selector finger |
| 4 | Selector gate |
The axial movement of the selector cable is transferred at the transmission to the selector shaft which can turn in its bearing.
If the gearshift lever is moved to the left or right, the selector shaft and the selector boss both turn together in the corresponding direction.
As this happens, the selector shaft is guided by a pin in the selector gate.
The selector boss selects the required selector fork.
At the same time the shift locking bush prevents access to other gear combinations.
