Fiesta ST
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams Component Testing
>>
Component Testing
>>
Master Window Control Switch
>>
Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

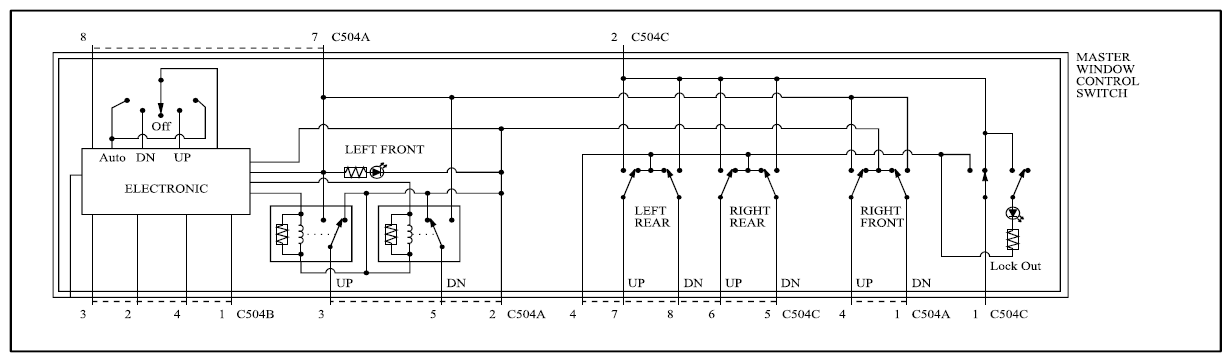

Master Window Control Switch: Schematic
Fig 1: Master Window Control Switch Schematic
Courtesy of FORD MOTOR CO.
