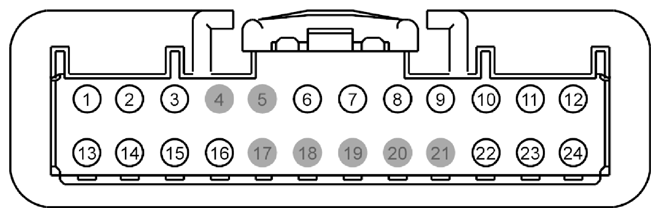

| 1 |
CRH03 (BN) |
22 |
CTRL MOD. - STEERING WHEEL # HORN |
|
| 2 |
CRW10 (BU-GN) |
22 |
SWITCH - FRONT WIPER LOW |
|
| 3 |
CHS12 (YE-GN) |
20 |
HEATER - PASSENGER CUSHION/BACK |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
| 7 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
| 8 |
CRW17 (GN-VT) |
22 |
SWITCH - FRONT WIPER INTERVAL (A) |
|
| 9 |
CRW18 (VT-WH) |
22 |
SWITCH - FRONT WIPER INTERVAL (B) |
|
| 10 |
VLF14 (BU-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + |
|
| 11 |
CLN56 (BN-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN |
|
| 12 |
CPL22 (GN-VT) |
22 |
SWITCH - LIFTGATE/DECKLID/CARGO # LOCK |
|
| 13 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
| 14 |
CRD04 (BN-GN) |
22 |
INDICATOR - HEATER REAR WINDOW |
manual air conditioning |
| 15 |
CHS11 (VT-GN) |
20 |
HEATER - DRIVER CUSHION/BACK |
|
| 16 |
CRD09 (BU-GY) |
22 |
SWITCH - HEATER REAR WINDOW |
manual air conditioning |
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
RLF14 (GY-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - |
|
| 23 |
CLN02 (VT-BN) |
20 |
CTRL MOD. - ENTRY ILLUM. (FRONT) |
|
| 24 |
CLN04 (BU-BN) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION + |
|
