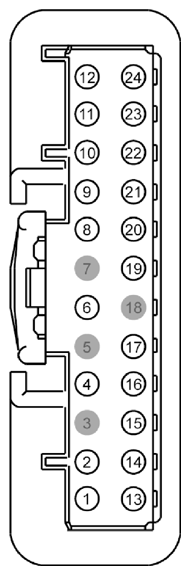

| 1 |
CLS09 (WH-OG) |
20 |
CTRL MOD. - PARK REAR RIGHT |
|
| 2 |
LMP07 (BU-WH) |
20 |
CTRL MOD. - PARKING AID # SENSORS REAR + |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
CDC30 (BU-GY) |
22 |
SWITCH - IGNITION # KEY IN |
without push button start |
| 5 |
* |
* |
Not Used |
|
| 6 |
CPL10 (GN-WH) |
22 |
CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
CPL30 (BU-BN) |
22 |
SWITCH - LATCH DRIVER # UNLOCK |
|
| 9 |
CPL28 (VT-BN) |
20 |
SWITCH - LATCH DRIVER # RESET |
|
| 10 |
CPL29 (YE-GY) |
20 |
SWITCH - LATCH DRIVER # SET |
|
| 11 |
VRW26 (BN-YE) |
22 |
CTRL MOD. - RAIN SENSOR LIN BUS |
|
| 12 |
RMP07 (GN-WH) |
20 |
CTRL MOD. - PARKING AID # SENSORS REAR - |
|
| 13 |
CLS08 (VT-GN) |
20 |
CTRL MOD. - PARK REAR LEFT |
|
| 14 |
VMP17 (YE-OG) |
20 |
SENSOR - PARKING AID # REAR # (RIGHT OUTER) |
|
| 15 |
VMP16 (YE-GY) |
20 |
SENSOR - PARKING AID # REAR # (RIGHT INNER) |
|
| 16 |
VMP14 (WH-OG) |
20 |
SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE) |
|
| 17 |
VMP15 (YE-GN) |
20 |
SENSOR - PARKING AID # REAR # (LEFT OUTER) |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
CPL26 (GN-VT) |
22 |
SWITCH - LATCH DRIVER # AJAR |
|
| 20 |
CPL31 (WH) |
20 |
SWITCH - LATCH PASSENGER # AJAR |
|
| 21 |
CPL36 (GN) |
20 |
SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) |
|
| 22 |
CPL39 (YE) |
22 |
SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR) |
|
| 23 |
CPL44 (YE-OG) |
20 |
SWITCH - LIFTGATE/DECKLID/CARGO # AJAR |
|
| 24 |
VRT26 (VT) |
20 |
CTRL MOD. - INTERIOR SCAN SENSOR LIN BUS |
|
