Piston Diameter: Check
NOTE:
Refer to the appropriate Engine article
for the specification.

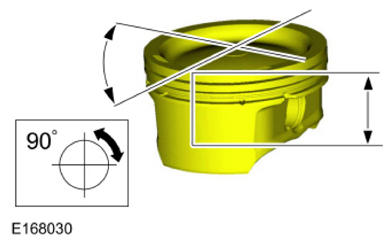

- Measure the piston diameter (at the measuring window) 90 degrees from the piston pin and 35.35 mm (1.39 in) down from the top of the piston at the point indicated.
