Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.
    NOTE: The PMI (programmable module installation) process must begin with the current PCM  installed. If the current PCM  does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI  process for the PCM  following the on-screen instructions.

  2. Refer to: AIR CLEANER OUTLET PIPE .

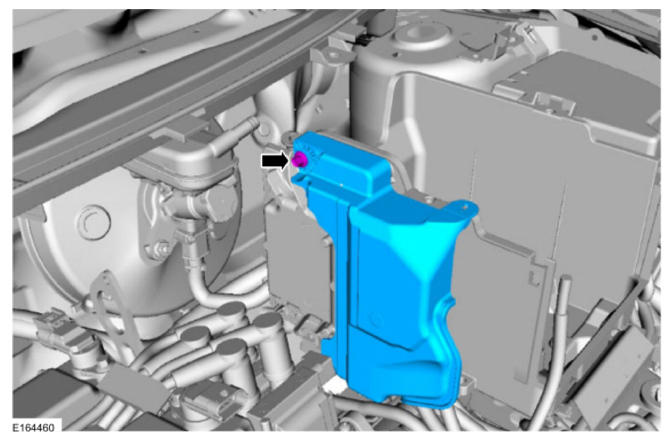

  3. Torque:  48 lb.in (5.4 Nm)
    G09551167

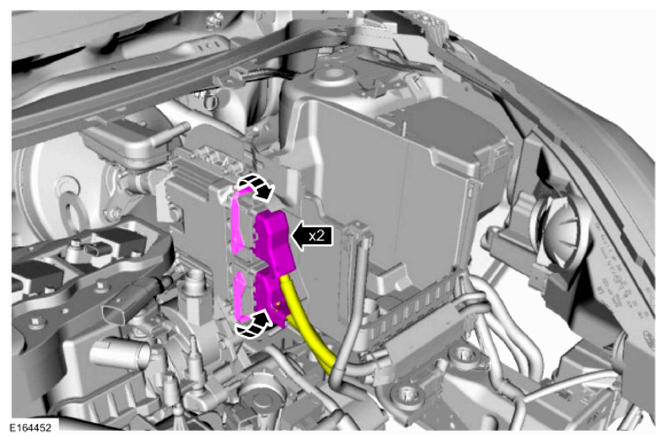

  4. G09579958

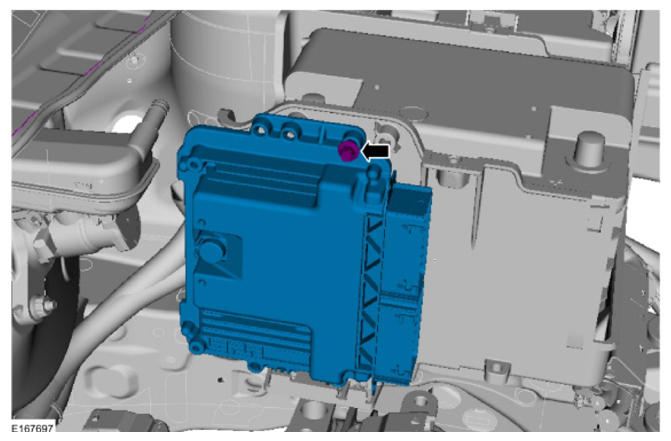

  5. Torque:  48 lb.in (5.4 Nm)
    G09551196
