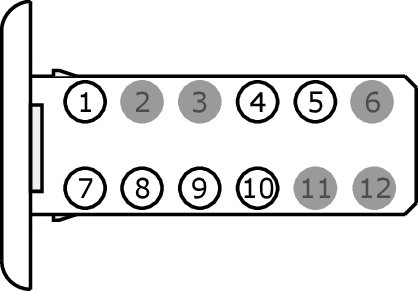

Connector End View (C2123) - FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2123

Description

FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)

Color

Harness

14K024

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP07 (WH-RD)	22	FUSE - 7 OR CIRCUIT BREAKER
2	*	*	Not Used
3	*	*	Not Used
4	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH
5	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW
6	*	*	Not Used
7	RME24 (BU-WH)	22	CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO
8	VMC49 (VT)	*	CTRL MOD. - INTEGRATED CONTROL PANEL LIN BUS
9	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND POINT (OBSOLETE)
10	VME14 (GY-YE)	22	SWITCH - REDUNDANT AUDIO +
11	*	*	Not Used
12	*	*	Not Used

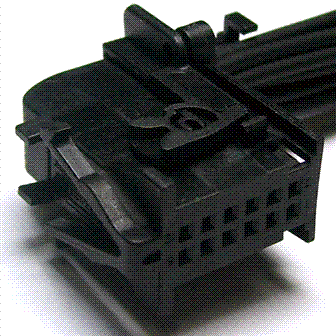

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1278

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ABA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Message Center

Module - Driver Information

Module - Front Interface
