Fuel Pump Driver Module (FPDM): Removal
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Removal steps in this procedure may contain installation details.
Remove the LH front seat.
Refer to: FRONT SEAT .

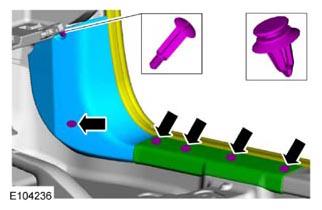

- Remove the LH
B-Pillar trim panel.
Refer to: B-PILLAR TRIM PANEL .

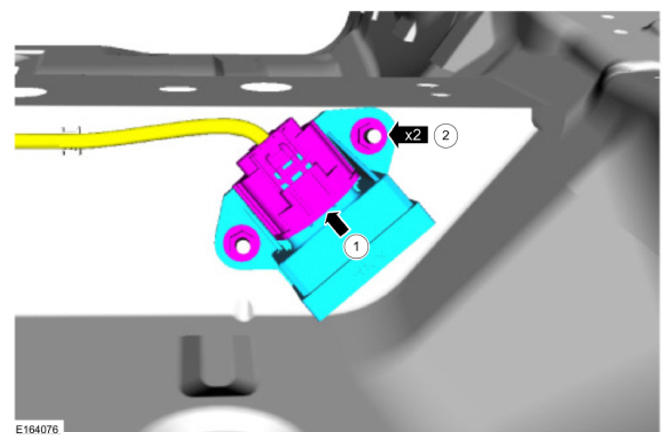

- RH
shown in illustration, LH
similar.
