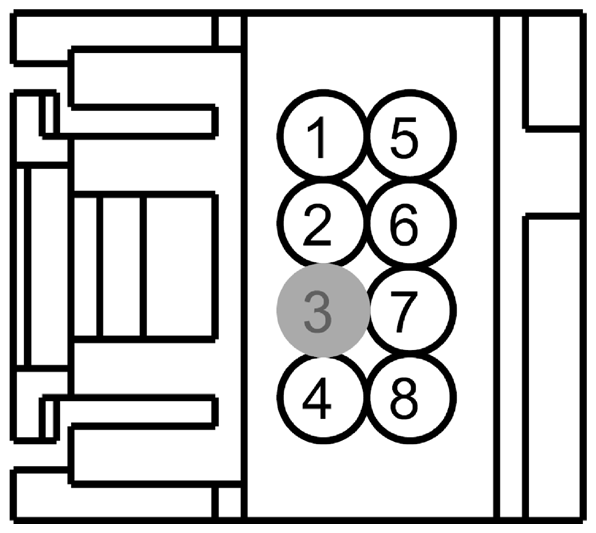

Ambient Lighting Module Connector End View (C3347)

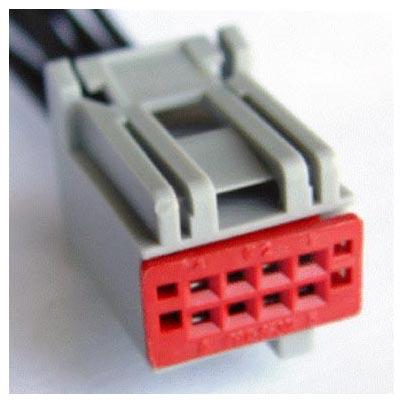

Fig 1: Identifying Ambient Lighting Module Connector (C3347)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (GN-RD)	20	CTRL MOD. - ENTRY ILLUM. (FRONT)
2	* (BN-YE)	20	CTRL MOD. - AMBIENT LIGHTING DIM UP
3	*	*	Not Used
4	* (BN)	22	CTRL MOD. - AMBIENT LIGHTING RTN
5	* (GN)	22	CTRL MOD. - AMBIENT LIGHTING (GRN) FEED
6	* (BU)	22	CTRL MOD. - AMBIENT LIGHTING (BLU) FEED
7	* (OG)	22	CTRL MOD. - AMBIENT LIGHTING (RED) FEED
8	* (BK)	22	GROUND - PILLAR B RIGHT

Available Pigtail Kits
Pigtail Kit Part Number WPT-998	Service Part Number: 3U2Z-14S411-DLB  Gauge: 18  Pin material: Silver  Cavities: 8  Vehicle Uses Radio Radio - Amplifier Switch - Fuel Filler Door Switch - Message Center Switch - Power Mirror Switch - Power Window - Driver Switch - Seat Lumbar Switch - Steering Column Tilt/Telescope Switch - Upfitter
Pigtail Kit Part Number WPT-219	Service Part Number: 3U2Z-14S411-DLA  Gauge: 18  Pin material: Tin  Cavities: 8  Vehicle Uses Radio Radio - Amplifier Switch - Fuel Filler Door Switch - Message Center Switch - Power Mirror Switch - Power Window Switch - Seat Lumbar Switch - Steering Column Tilt/Telescope
