Anti-Lock Brake System (Abs) Module Connector End View (C135)

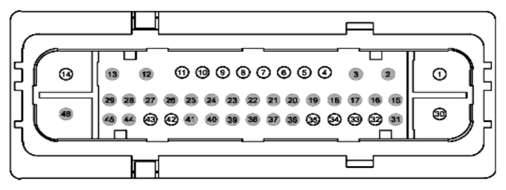

Fig 1: Identifying Anti-Lock Brake System Module Connector (C135)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB01 (RD)	10	FUSE - 1 OR CIRCUIT BREAKER
2	*	*	Not Used
3	*	*	Not Used
4	RCA19 (VT)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT
5	VCA05 (GY-VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT
6	RCA18 (BN-GN)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR
7	VCA04 (BU-OG)	20	SENSOR - WHEEL SPEED LEFT REAR
8	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT
9	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT
10	RCA20 (BN)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR
11	VCA06 (WH-OG)	20	SENSOR - WHEEL SPEED RIGHT REAR
12	*	*	Not Used
13	*	*	Not Used
14	GD123 (BK-GY)	10	GROUND - FENDER FRONT RIGHT
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
27	*	*	Not Used
28	*	*	Not Used
29	*	*	Not Used
30	SBB09 (RD)	12	FUSE - 9 OR CIRCUIT BREAKER
31	*	*	Not Used
32	VCA23 (BU-WH)	20	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH
33	VCA24 (GN-OG)	20	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW
34	CCA47 (BU-WH)	20	SWITCH - ELECTRONIC STABILITY CONTROL DISABLE
35	CBP22 (GN-OG)	20	FUSE - 22 OR CIRCUIT BREAKER
36	*	*	Not Used
37	*	*	Not Used
38	*	*	Not Used
39	*	*	Not Used
40	*	*	Not Used
41	*	*	Not Used
42	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
43	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
44	*	*	Not Used
45	*	*	Not Used
46	*	*	Not Used
