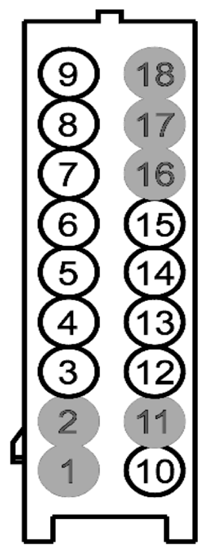

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
GD115 (BK-GY) |
18 |
GROUND - CROSS CAR BEAM # 2ND POINT (OBSOLETE) |
|
| 4 |
CH229 (WH-BU) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 2/OPEN (IF PLUS) |
|
| 5 |
CH234 (YE-GN) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2/OPEN (IF PLUS) |
|
| 6 |
CH233 (VT-BN) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1/CLOSE (IF PLUS) |
|
| 7 |
CH207 (BU-GY) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS) |
|
| 8 |
CH208 (GN-OG) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS) |
|
| 9 |
CH228 (YE-GY) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1/CLOSE (IF PLUS) |
|
| 10 |
SBP12 (GN-RD) |
22 |
FUSE - 12 OR CIRCUIT BREAKER |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
RH111 (GY-BU) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
|
| 13 |
LH111 (BN-WH) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS |
|
| 14 |
CH232 (WH-BN) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COMMON |
|
| 15 |
CH227 (VT-GN) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COMMON |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
