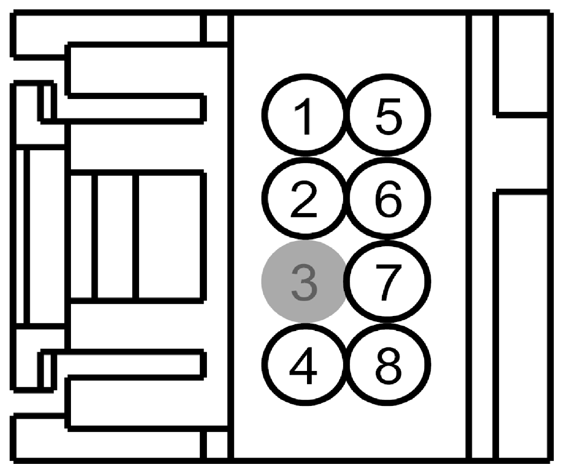

Front Controls Interface Module (FCIM) Connector End View (C2402)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLS32 (BN-YE) | 22 | SWITCH - HAZARD | |
| 2 | CPL22 (GN-VT) | 22 | SWITCH - LIFTGATE/DECKLID/CARGO # LOCK | |
| 3 | * | * | Not Used | |
| 4 | VDB14 (VT-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 5 | GD115 (BK-GY) | 20 | GROUND - CROSS CAR BEAM # 2ND POINT (OBSOLETE) | |
| 6 | CPL75 (BN-WH) | 22 | RELAY - DOOR LOCK # ALL LOCK | |
| 7 | VDB13 (BU-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 7 | VMC49 (VT) | 26 | CTRL MOD. - INTEGRATED CONTROL PANEL LIN BUS | |
| 8 | SBP07 (WH-RD) | 22 | FUSE - 7 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-991 | Service Part Number: 3U2Z-14S411-LCB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
