Occupant Classification System Module (OCSM) Connector End View (C3159)

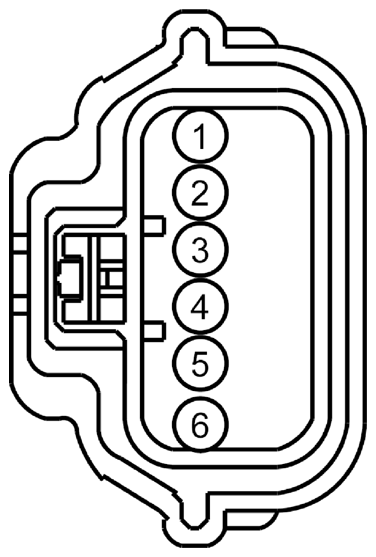

Fig 1: Identifying Occupant Classification System Module Connector (C3159)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CBP04 (VT)	20	FUSE - 4 OR CIRCUIT BREAKER
2	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	GD145 (BK-BU)	20	GROUND - PILLAR B RIGHT (OBSOLETE)
5	LR142 (YE-BU)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD +
6	RR142 (GN)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD -

Available Pigtail Kits

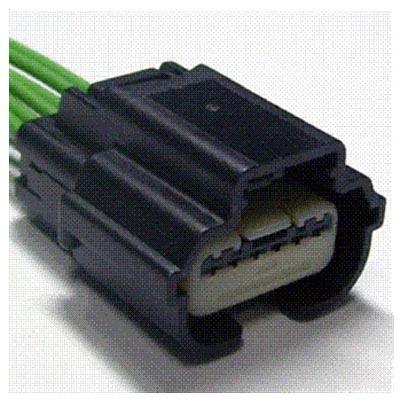

Pigtail Kit Part Number WPT-1338	Service Part Number: 9U2Z-14S411-BB Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Occupant Classification Sensor - Acceleration Pedal Position Sensor - Transmission Range Switch - Door Ajar/Interior Lamp

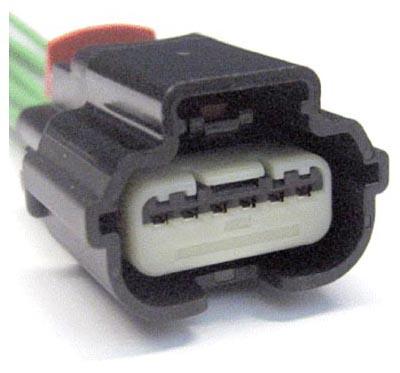

Pigtail Kit Part Number WPT-929	Service Part Number: 9U2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Sensor - Acceleration Pedal Position Switch - Door Ajar/Interior Lamp
