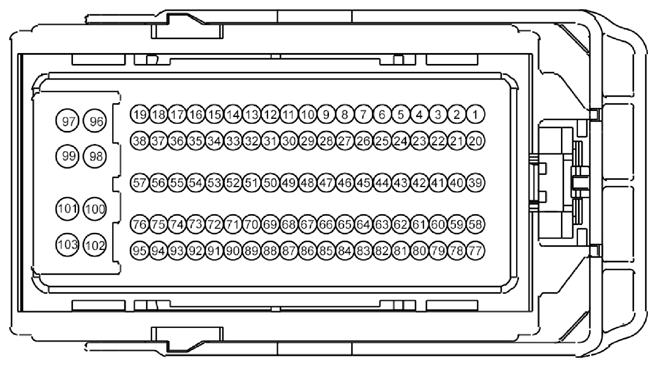

| 1 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HO2S12) |
|
| 2 |
CH302 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY/WOT AC CUTOFF (ACCR) |
|
| 3 |
CEC01 (WH-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL HIGH (FC) |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
CE174 (YE-GY) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRIC WATER PUMP RELAY |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
VE807 (YE-VT) |
20 |
SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) |
|
| 9 |
RE320 (BU) |
20 |
CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN) |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
LE230 (BN-BU) |
18 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE (VREF) |
|
| 14 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
RE230 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
|
| 17 |
RH108 (BN) |
20 |
CTRL MOD. - SENSOR REFRIGERANT PRESSURE - |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
RE150 (GN-BU) |
20 |
CTRL MOD. - POWERTRAIN # BOOST PRESSURE SENSOR - |
|
| 20 |
CE114 (GN-BU) |
18 |
CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANV) |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
CE113 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
* |
* |
Not Used |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
VE518 (BN-WH) |
20 |
MONITOR - FUEL PUMP (FPM) |
|
| 28 |
CE436 (VT-OG) |
20 |
CTRL MOD. -WAKE UP PCM |
|
| 29 |
* |
* |
Not Used |
|
| 30 |
CET40 (GN-OG) |
20 |
PARK/NEUTRAL SWITCH SIGNAL |
automatic transmission |
| 30 |
CE903 (BU-OG) |
20 |
SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT) |
manual transmission |
| 31 |
* |
* |
Not Used |
|
| 32 |
VE755 (YE-VT) |
20 |
SENSOR - AIR CHARGE TEMPERATURE |
|
| 33 |
* |
* |
Not Used |
|
| 34 |
* |
* |
Not Used |
|
| 35 |
* |
* |
Not Used |
|
| 36 |
* |
* |
Not Used |
|
| 37 |
RE242 (GN) |
18 |
CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (HEGO_RTN) |
|
| 38 |
* |
* |
Not Used |
|
| 39 |
CE226 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP CONTROL (FPC) |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
VE462 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE |
|
| 42 |
CEC02 (GN-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL LOW (FC) |
|
| 43 |
CDC12 (YE) |
18 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
|
| 44 |
* |
* |
Not Used |
|
| 45 |
VE701 (YE-OG) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
|
| 46 |
* |
* |
Not Used |
|
| 47 |
CDC35 (BU-WH) |
18 |
SWITCH - IGNITION # START |
|
| 48 |
CBP22 (GN-OG) |
20 |
FUSE - 22 OR CIRCUIT BREAKER |
|
| 49 |
* |
* |
Not Used |
|
| 50 |
CDC15 (VT) |
18 |
GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) |
|
| 51 |
* |
* |
Not Used |
|
| 52 |
VH442 (GN-BN) |
20 |
SENSOR - REFRIGERANT PRESSURE |
|
| 53 |
* |
* |
Not Used |
|
| 54 |
* |
* |
Not Used |
|
| 55 |
* |
* |
Not Used |
|
| 56 |
* |
* |
Not Used |
|
| 57 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
| 58 |
CE302 (YE-BU) |
20 |
CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY |
|
| 59 |
* |
* |
Not Used |
|
| 60 |
* |
* |
Not Used |
|
| 61 |
* |
* |
Not Used |
|
| 62 |
CDC54 (WH-GN) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) |
|
| 63 |
* |
* |
Not Used |
|
| 64 |
* |
* |
Not Used |
|
| 65 |
* |
* |
Not Used |
|
| 66 |
CCA26 (BU-GY) |
20 |
CTRL MOD. - SWITCH BRAKE PEDAL FORCE NORMALLY OPEN |
|
| 67 |
* |
* |
Not Used |
|
| 68 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 69 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 70 |
* |
* |
Not Used |
|
| 71 |
* |
* |
Not Used |
|
| 72 |
* |
* |
Not Used |
|
| 73 |
VE922 (VT-GN) |
18 |
TRANSDUCER - FUEL TANK PRESSURE (FTPT) |
|
| 74 |
VE824 (YE-GN) |
20 |
SENSOR - BOOST PRESSURE |
|
| 75 |
VE740 (VT-GY) |
20 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
|
| 76 |
* |
* |
Not Used |
|
| 77 |
* |
* |
Not Used |
|
| 78 |
* |
* |
Not Used |
|
| 79 |
* |
* |
Not Used |
|
| 80 |
* |
* |
Not Used |
|
| 81 |
* |
* |
Not Used |
|
| 82 |
* |
* |
Not Used |
|
| 83 |
* |
* |
Not Used |
|
| 84 |
* |
* |
Not Used |
|
| 85 |
* |
* |
Not Used |
|
| 86 |
* |
* |
Not Used |
|
| 87 |
* |
* |
Not Used |
|
| 88 |
* |
* |
Not Used |
|
| 89 |
* |
* |
Not Used |
|
| 90 |
* |
* |
Not Used |
|
| 91 |
* |
* |
Not Used |
|
| 92 |
* |
* |
Not Used |
|
| 93 |
* |
* |
Not Used |
|
| 94 |
* |
* |
Not Used |
|
| 95 |
* |
* |
Not Used |
|
| 96 |
GD187 (BK-GN) |
14 |
GROUND - SHOCK TOWER LEFT BRACKET #1 |
|
| 97 |
GD187 (BK-GN) |
14 |
GROUND - SHOCK TOWER LEFT BRACKET #1 |
|
| 98 |
* |
* |
Not Used |
|
| 99 |
GD187 (BK-GN) |
14 |
GROUND - SHOCK TOWER LEFT BRACKET #1 |
|
| 100 |
* |
* |
Not Used |
|
| 101 |
CBB18 (GY-OG) |
14 |
FUSE - 18 OR CIRCUIT BREAKER |
|
| 102 |
CBB18 (GY-OG) |
14 |
FUSE - 18 OR CIRCUIT BREAKER |
|
| 103 |
CBB18 (GY-OG) |
14 |
FUSE - 18 OR CIRCUIT BREAKER |
|
