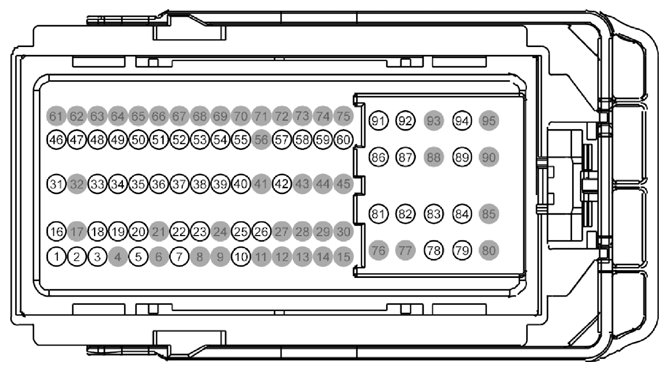

| 1 |
CE235 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HO2S11) |
|
| 2 |
CE167 (YE-OG) |
18 |
CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE |
|
| 3 |
LE135 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) + |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
LE428 (BU-WH) |
20 |
CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPREF) |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
LE458 (BU-WH) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
RE141 (BN-GN) |
20 |
CTRL MOD. - POWERTRAIN # ENGINE COOLANT TEMPERATURE SENSOR |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
CE421 (VT) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
RE427 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPRTN) |
|
| 19 |
RE329 (WH-GN) |
20 |
CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) - |
|
| 20 |
RE143 (VT) |
18 |
CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 - |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
RE405 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTNA) |
|
| 23 |
VE716 (YE) |
20 |
SENSOR - ENGINE COOLANT TEMPERATURE (ECT) |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
LE448 (GY-BU) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) |
|
| 26 |
VE826 (BN-VT) |
20 |
SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
* |
* |
Not Used |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
CE422 (WH-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 12 (VCT12) |
|
| 32 |
* |
* |
Not Used |
|
| 33 |
CE415 (BN-YE) |
20 |
CTRL MOD. - POWERTRAIN # THROTTLE POSITION COMMAND 2 (TP2) |
|
| 34 |
CE414 (GN-OG) |
20 |
CTRL MOD. - POWERTRAIN # THROTTLE POSITION COMMAND 1 (TP1) |
|
| 35 |
VE803 (BU-GN) |
20 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + |
|
| 36 |
VE736 (WH-GN) |
18 |
SENSOR - CAMSHAFT POSITION BANK 1 EX |
|
| 37 |
VE738 (YE-BU) |
18 |
SENSOR - CAMSHAFT POSITION BANK 2 EX |
|
| 38 |
VE727 (BU-BN) |
20 |
SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) |
|
| 39 |
LE451 (BN-YE) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) |
|
| 40 |
LE452 (GN) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) |
|
| 41 |
* |
* |
Not Used |
|
| 42 |
CMC24 (GY) |
20 |
SWITCH - OIL PRESSURE |
|
| 43 |
* |
* |
Not Used |
|
| 44 |
* |
* |
Not Used |
|
| 45 |
* |
* |
Not Used |
|
| 46 |
CE166 (GY-OG) |
18 |
CTRL MOD. - POWERTRAIN # DEGAS SOLENOID VALVE |
|
| 47 |
CE460 (VT-WH) |
18 |
CTRL MOD. - POWERTRAIN # WASTEGATE SOLENOID (WGT_CV) |
|
| 48 |
VE917 (BN-YE) |
18 |
VALVE - EXHAUST GAS RECIRCULATION COOLER BYPASS (EGRCBV) |
|
| 49 |
VE711 (YE-VT) |
20 |
SENSOR - CRANKSHAFT POSITION (CKPP) + |
|
| 50 |
CE303 (WH-VT) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) |
|
| 51 |
CE304 (YE-BU) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) |
|
| 52 |
CE305 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) |
|
| 53 |
CE306 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-B) |
|
| 54 |
RE135 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - |
|
| 55 |
CDC15 (VT) |
20 |
GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) |
|
| 56 |
* |
* |
Not Used |
|
| 57 |
VE802 (BN-BU) |
20 |
SENSOR - KNOCK 2ND BANK 1ST (KS2N) [KSL2-] |
|
| 58 |
RE324 (BN-GN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] |
|
| 59 |
VE801 (VT-OG) |
20 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] |
|
| 60 |
RE323 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - |
|
| 61 |
* |
* |
Not Used |
|
| 62 |
* |
* |
Not Used |
|
| 63 |
* |
* |
Not Used |
|
| 64 |
* |
* |
Not Used |
|
| 65 |
* |
* |
Not Used |
|
| 66 |
* |
* |
Not Used |
|
| 67 |
* |
* |
Not Used |
|
| 68 |
* |
* |
Not Used |
|
| 69 |
* |
* |
Not Used |
|
| 70 |
* |
* |
Not Used |
|
| 71 |
* |
* |
Not Used |
|
| 72 |
* |
* |
Not Used |
|
| 73 |
* |
* |
Not Used |
|
| 74 |
* |
* |
Not Used |
|
| 75 |
* |
* |
Not Used |
|
| 76 |
* |
* |
Not Used |
|
| 77 |
* |
* |
Not Used |
|
| 78 |
RE256 (GY-BU) |
16 |
CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) - |
|
| 79 |
CE256 (BU-OG) |
16 |
CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) + |
|
| 80 |
* |
* |
Not Used |
|
| 81 |
RE206 (BU-OG) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - |
|
| 82 |
RE207 (GN-VT) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - |
|
| 83 |
RE208 (BU) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - |
|
| 84 |
RE205 (YE-BU) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - |
|
| 85 |
* |
* |
Not Used |
|
| 86 |
CE208 (YE-OG) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) |
|
| 87 |
CE206 (GY-YE) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) |
|
| 88 |
* |
* |
Not Used |
|
| 89 |
RE134 (BU-OG) |
16 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
|
| 90 |
* |
* |
Not Used |
|
| 91 |
CE205 (GN-BU) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) |
|
| 92 |
CE207 (VT-GY) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) |
|
| 93 |
* |
* |
Not Used |
|
| 94 |
LE134 (YE) |
16 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
|
| 95 |
* |
* |
Not Used |
|
