Remote Function Actuator (RFA) Module Connector End View (C3503C)

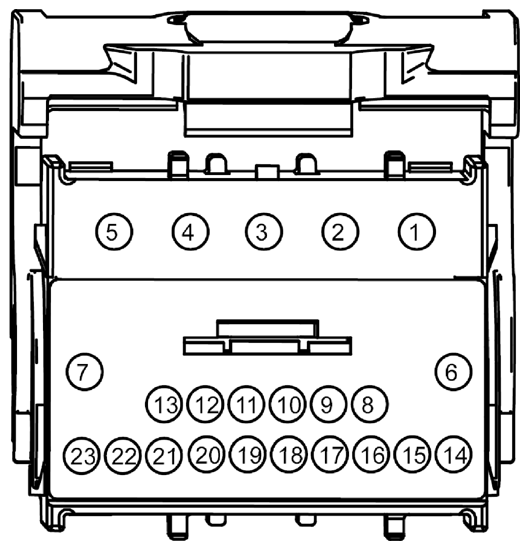

Fig 1: Identifying Remote Function Actuator Module Connector (C3503C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	CDC35 (BU-WH)	20	SWITCH - IGNITION # START
7	*	*	Not Used
8	ZA101 (OG)	20	TEMPORARY NO. - 1
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	CDC41 (WH-BN)	22	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
