Remote Function Actuator (RFA) Module Connector End View (C3503D)

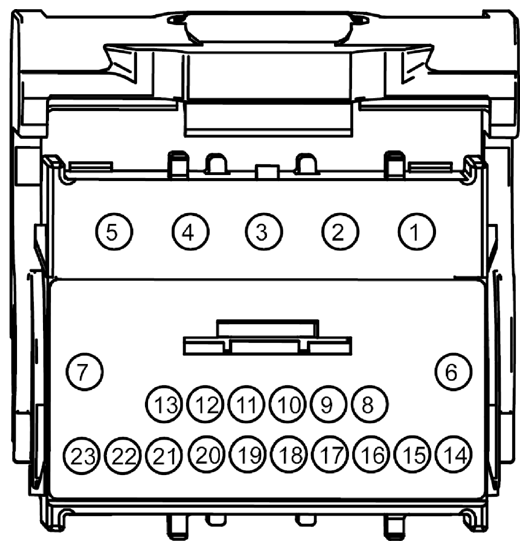

Fig 1: Identifying Remote Function Actuator Module Connector (C3503D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	*	*	Not Used
3	GD145 (BK-BU)	12	GROUND - PILLAR B RIGHT (OBSOLETE)
4	GD145 (BK-BU)	20	GROUND - PILLAR B RIGHT (OBSOLETE)
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
