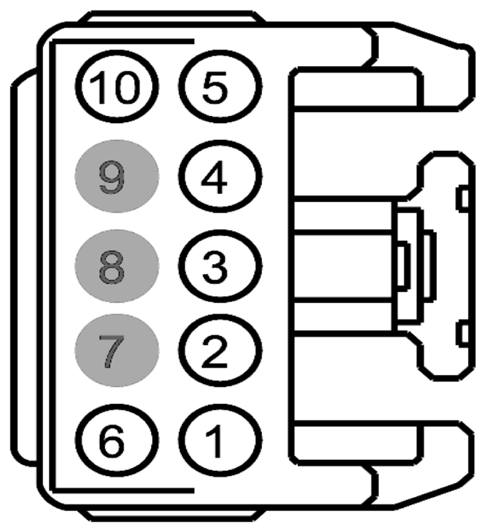

Roof Opening Panel Module Connector End View (C921)

Fig 1: Identifying Roof Opening Panel Module Connector (C921)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD145 (BK-BU)	14	GROUND - PILLAR B RIGHT (OBSOLETE)
2	CPR39 (VT-WH)	22	MOTOR/SMART - MOON/SUN ROOF SWITCH COMMON
3	CBP08 (GY-YE)	22	FUSE - 8 OR CIRCUIT BREAKER
4	CPR38 (WH-BU)	22	SWITCH - MOON/SUN ROOF TILT
5	CPR31 (VT-BN)	22	SWITCH - MOON/SUN ROOF OPEN
6	SBP35 (BU-RD)	14	FUSE - 35 OR CIRCUIT BREAKER
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	CPR40 (YE-OG)	22	SWITCH - MOON/SUN ROOF CLOSE

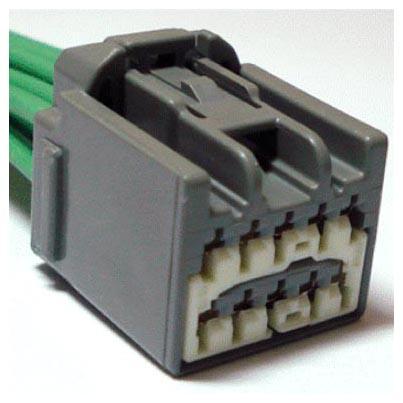

Available Pigtail Kits

Pigtail Kit Part Number WPT-1037

Service Part Number: 1U2Z-14S411-BLB  Gauge: 14  Pin material: Silver  Cavities: 10  Vehicle Uses Inverter - DC to AC Module - Anti-theft Module - Heated Seat Module - Power Moonroof Radio - Amplifier Solenoid - Brake Shift Park Interlock Switch - Gear Shift Select/Neutral Safety Switch - Headlamp Switch - Heated Seat Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Overdrive Cancel Switch - Turn Signal Switch - Windshield Wiper/Washer
