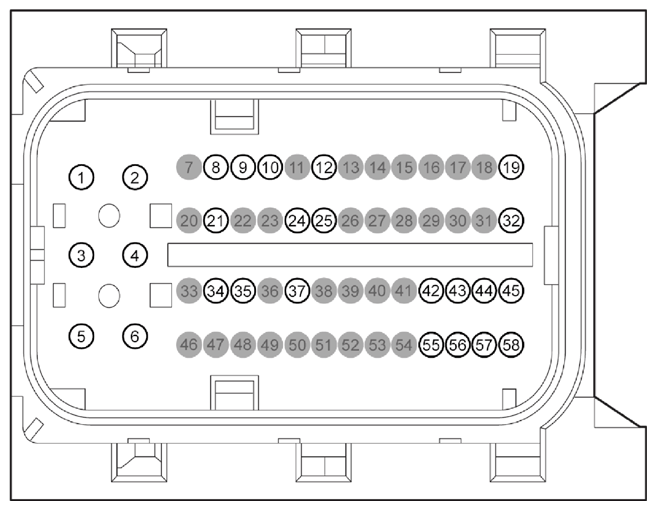

Transmission Control Module (TCM) Connector End View (C1750B)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (WH or WH-BU) |
14 |
PHASE W CLUTCH 2 |
|
| 2 |
* (WH or WH-GY) |
14 |
PHASE U CLUTCH 2 |
|
| 3 |
* (WH or WH-GN) |
14 |
PHASE V CLUTCH 2 |
|
| 4 |
* (WH or WH-BK) |
14 |
PHASE W CLUTCH 1 |
|
| 5 |
* (WH or WH-PK) |
14 |
PHASE V CLUTCH 1 |
|
| 6 |
* (WH) |
14 |
PHASE U CLUTCH 1 |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
* (WH-BU) |
22 |
ISS2 INPUT SPEED |
|
| 9 |
* (YE-OG) |
22 |
OSS SPEED SENSOR SIGNAL |
|
| 10 |
* (PK-GN) |
22 |
ISS1 INPUT SPEED DIR |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* (BU) |
22 |
ISS2 SPEED SENSOR SUPPLY |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* (PK) |
22 |
C1 HALL EFFECT 2 |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* (GN-BN) |
22 |
ISS1 SPEED SENSOR SUPPLY |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* (GN) |
22 |
TRS INPUT |
|
| 25 |
* (GN) |
22 |
TRS INPUT |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
* |
* |
Not Used |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
* (PK or WH-BN) |
22 |
C1 HALL EFFECT 1 |
|
| 33 |
* |
* |
Not Used |
|
| 34 |
* (WH-GN) |
22 |
5V SUPPLY TRS |
|
| 35 |
* (BK) |
20 |
GROUND TRS |
|
| 36 |
* |
* |
Not Used |
|
| 37 |
* (BN-GN) |
22 |
OSS OUTPUT SPEED SUPPLY |
|
| 38 |
* |
* |
Not Used |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
* |
* |
Not Used |
|
| 42 |
* (PK or WH-GY) |
22 |
C2 HALL EFFECT 2 |
|
| 43 |
* (PK or WH-BU) |
22 |
C2 HALL EFFECT 1 |
|
| 44 |
* (PK or YE-WH) |
22 |
C2 HALL EFFECT 3 |
|
| 45 |
* (PK or BN-BU) |
22 |
C1 HALL EFFECT 3 |
|
| 46 |
* |
* |
Not Used |
|
| 47 |
* |
* |
Not Used |
|
| 48 |
* |
* |
Not Used |
|
| 49 |
* |
* |
Not Used |
|
| 50 |
* |
* |
Not Used |
|
| 51 |
* |
* |
Not Used |
|
| 52 |
* |
* |
Not Used |
|
| 53 |
* |
* |
Not Used |
|
| 54 |
* |
* |
Not Used |
|
| 55 |
* (WH-PK) |
20 |
C2 5V SUPPLY |
|
| 56 |
* (BK or BK-WH) |
20 |
GROUND CLUTCH 2 |
|
| 57 |
* (BK or BK-WH) |
20 |
GROUND CLUTCH 1 |
|
| 58 |
* (WH-PK) |
20 |
C1 5V SUPPLY |
|
