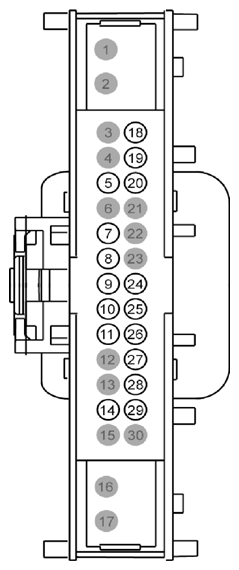

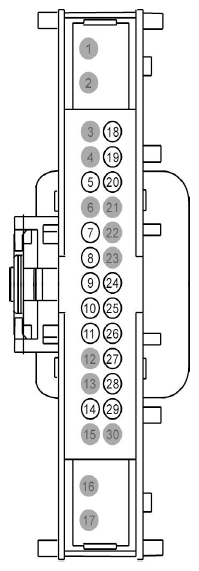

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
VHA19 (BN) |
26 |
CTRL MOD. - REAR BLOWER # BLOWER OUT |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
VHA09 (VT) |
26 |
SENSOR - AUX. TEMPERATURE DOOR POSITION |
|
| 8 |
VHA18 (YE) |
26 |
SENSOR - AUX. DOOR POSITION PANEL/FLOOR |
|
| 9 |
CHA35 (BU) |
26 |
CTRL MOD. - REAR CLIMATE # REAR SIGNAL FEED 1 |
|
| 10 |
CHA36 (GY) |
26 |
CTRL MOD. - REAR CLIMATE # REAR SIGNAL FEED 2 |
|
| 11 |
CHA37 (WH) |
26 |
CTRL MOD. - REAR CLIMATE # REAR SIGNAL FEED 3 |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
VHA39 (BU) |
26 |
CTRL MOD. - REAR CLIMATE # TEMPERATURE OUTPUT |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
VH413 (WH) |
26 |
SENSOR - HUMIDITY |
|
| 19 |
VHA25 (BN) |
26 |
CTRL MOD. - REAR CLIMATE # REAR BLOWER CONTROL |
|
| 20 |
CH112 (VT-WH) |
22 |
CTRL MOD. - CLIMATE # AUXILIARY BLOWER SPEED #1 |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
VHA38 (GY) |
26 |
CTRL MOD. - REAR CLIMATE # MODE OUTPUT |
|
| 25 |
CH242 (VT) |
26 |
CTRL MOD. - CLIMATE # AUX. DOOR MOTOR PANEL/FLOOR COIL 2/PANEL (IF PLUS) |
|
| 26 |
CH243 (BU) |
26 |
CTRL MOD. - CLIMATE # AUX. DOOR MOTOR PANEL/FLOOR COIL 1/FLOOR (IF PLUS) |
|
| 27 |
CH244 (GY) |
26 |
CTRL MOD. - CLIMATE # AUX. DOOR MOTOR TEMP. LEFT COIL 2/OPEN (IF PLUS) |
|
| 28 |
CH245 (BN) |
26 |
CTRL MOD. - CLIMATE # AUX. DOOR MOTOR TEMP. LEFT COIL 1/CLOSE (IF PLUS) |
|
| 29 |
VH414 (GN) |
26 |
SENSOR - INCAR TEMP. |
|
| 30 |
* |
* |
Not Used |
|
