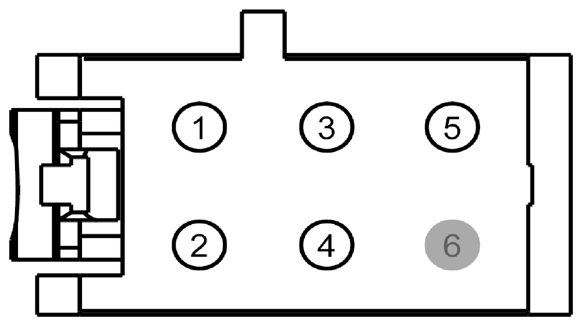

Power Fold Module (PFM) Connector End View (C4250B)

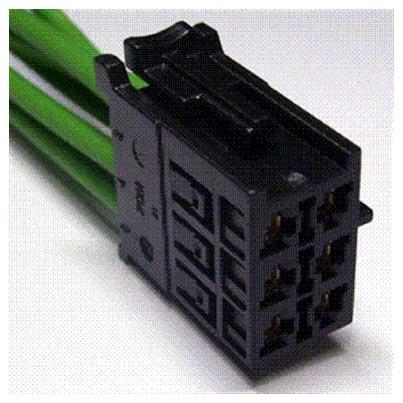

Fig 1: Identifying Power Fold Module Connector (C4250B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPSB5 (WH-BU)	20	SENSOR - 3RD ROW SEAT RIGHT STOW/RECLINE
2	CPSB7 (YE-GN)	16	CTRL MOD. - 3RD ROW SEAT RIGHT RECLINE NEGATIVE (-)
3	LPSB5 (GN-WH)	20	SENSOR - 3RD ROW SEAT RIGHT STOW
4	CPSB6 (GY-BN)	16	CTRL MOD. - 3RD ROW SEAT RIGHT RECLINE POSITIVE (+)
5	LPSB8 (BN-YE)	20	SENSOR - 3RD ROW SEAT RIGHT RECLINE
6	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1351	Service Part Number: DU2Z-14S411-VA  Gauge: 14  Pin material: Silver  Cavities: 6  Vehicle Uses Module - Seat
