6.2L 2V F-Series Super Duty

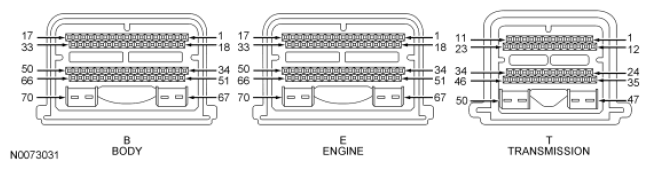

Fig 1: Identifying Engine, Body And Transaxle Connector Terminals (6.2L 2V F-Series Super Duty)
G09137610Courtesy of FORD MOTOR CO.
SENSORS/INPUTS - 6.2L 2V F-SERIES SUPER DUTY

Sensors/Inputs PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
FANSS B3 6375 575 775 950 RPM
PTOIR_V B8 0 0 0 0 VOLTS
BOO1 B13 OFF ON (E) OFF OFF ON/OFF
PTO B22 OFF OFF OFF OFF ON/OFF
APP1 B28 0.84 0.82 1.45 1.36 VOLTS
APP2 B29 0.42 0.41 0.73 0.69 VOLTS
FPM B32 61.32 61.32 60.35 60.31 %
MAF B40 0.29 5.23 14.28 32.09 g/s
BOO2 B46 OFF OFF OFF OFF ON/OFF
IAT B47 1.96/43.8 (111) 2.11/40.5 (105) 2.65/28.8 (84) 3.38/13.8 (57) VOLTS/DEG C (DEG F)
B+ B62 12.4 13-14 13-14 13-14 VOLTS
FTP B65 2.6/0.61 2.6/0.61 2.3/0.61 1.45/0.61 VOLTS/PSI
FTP_H2O B65 -0.06 -0.03 -2.17 -8.34 in-H2 O
KNOCK_1 E7 0 689 749 946 N/A
CHT E30 0.56/92 (197.6) 0.55/93 (199.4) 3.51/95.5 (204) 3.4/98.8 (210) VOLTS/DEG C (DEG F)
KNOCK_2 E45 0 528 670 834 N/A
O2S11_CUR T4/T29 (I) switching switching switching mA/uA
O2S12 T18 (I) (D) (D) (D) VOLTS
CPP/PNP (M/T) T19 NEUTRAL NEUTRAL DRIVE DRIVE NEUTRAL/DRIVE
HTRCM11 T24 0 1.66 1.66 1.49 AMPS
O2S22 T27 (I) (D) (D) (D) VOLTS
O2S21_CUR T28/T39 (I) switching switching switching mA/uA
HTRCM21 T35 0 1.09 1.66 1.5 AMPS
HTRCM12 T47 0 (AMP) 1.09 (AMP) 1.09 (AMP) 895 (mA) mA/AMP
APP PID 0 0 7 16.5 %
APP_MODE PID NO PEDAL NO PEDAL PART PEDAL PART PEDAL NO PEDAL/PART PEDAL
BARO PID 14.79/159.3 14.79/159.3 14.73/158.9 14.86/159.7 PSI/Hz
CAT_EVAL PID YES YES YES YES YES/NO
EGR_EVAL PID YES YES YES YES YES/NO
EONV_RDY PID NOT READY NOT READY NOT READY NOT READY READY/NOT READY
ETC_TRIM PID -0.51 (J) -0.51 (J) -0.51 (J) -0.51 (J) DEG
EVAP_EVAL PID NO NO NO NO YES/NO
EVAP020C PID NO NO NO NO YES/NO
EVAPSOAK PID YES YES YES YES YES/NO
FLI PID 89 (H) 88 (H) 85 (H) 95 (H) %
FUELSYS PID OPEN LOOP CLOSED LOOP CLOSED LOOP CLOSED LOOP OPEN/CLOSED LOOP
LOAD PID 0 21 51 87 %
MISFIRE PID NO NO NO NO YES/NO
MP_LRN PID NO NO NO NO YES/NO
O2S_EVAL PID OFF NO YES YES YES/NO
PTOLOAD PID OFF OFF OFF OFF OFF/ON
RPM PID 0 598 1047 1493 RPM
VCTADVERR PID 0 0.62 -1 1.37 DEG
VCTADVERR2 PID 0 -0.18 -1 1.12 DEG
VCTSYS PID OPEN LOOP CLOSED LOOP CLOSED LOOP CLOSED LOOP OPEN/CLOSED LOOP
VSS PID 0 0 48 km/h (30 MPH) 89 km/h (55 MPH) km/h/MPH
ACTUATORS/OUTPUTS - 6.2L 2V F-SERIES SUPER DUTY

Actuators/Outputs PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
PTOIL B11 OFF OFF OFF OFF ON/OFF
FP B19 75/OFF 35/ON 34.5/ON 34.6/ON %/ON/OFF
EVAPCV B20 0/OFF 0/OFF 0/OFF 0/OFF %/ON/OFF
VCTDC E2 0 0 39 44.46 VOLTS
VCTDC2 E16 0 0 45.92 43.12 VOLTS
EVAPCP E49 0 24.16 98.53 98.19 %
O2S11_HTR T24 0 41 39 37 %
O2S21_HTR T35 0 41 39 35 %
HTR11 T24 OFF ON ON ON ON/OFF
HTR12 T47 OFF ON ON ON ON/OFF
O2SHTR_EVAL PID NO NO YES YES YES/NO
RPMDSD PID 602 600 525 565 RPM
LONGFT1 PID (I) -20 TO +20 -20 TO +20 -20 TO +20 %
LONGFT2 PID (I) -20 TO +20 -20 TO +20 -20 TO +20 %
MIL PID OFF OFF OFF OFF ON/OFF
SHRTFT1 PID (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SHRTFT2 PID (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SPARKADV PID 10 15.75 40 38 DEG
VCTADV PID 0 -0.62 52.06 50.25 DEG
VCTADV2 PID 0 0.18 52.06 49.88 DEG
OTHER - 6.2L 2V F-SERIES SUPER DUTY

Other PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
VREF B52/E20/T31 5 5 5 5 VOLTS
VPWR B67/68 VBAT VBAT VBAT VBAT VOLTS
