PINPOINT TEST DI: Direct Fuel Injection Fuel Injector: Introduction: Notes

NOTE: Do not apply battery voltage across the fuel injector circuits. Permanent damage to the fuel injector may result.

This pinpoint test is intended to diagnose the following:

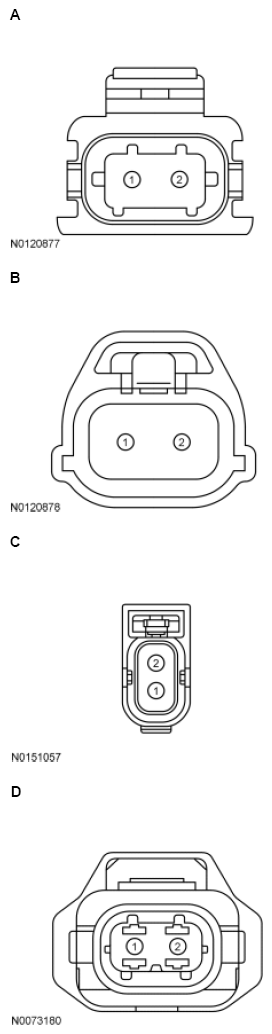

Vehicle Connector Pin Circuit
Escape,
Fiesta GTDI 1.6L,
Fusion 2.0L,
Fusion 1.6L,
MKZ,
Transit Connect		 A 2
1		 INJRTN
INJ
F-150,
Focus GDI 2.0L		 B 2
1		 INJRTN
INJ
Fiesta 1.0L,
Fusion 1.5L		 C 2
1		 INJRTN
INJ
All other vehicles D 2
1		 INJRTN
INJ
