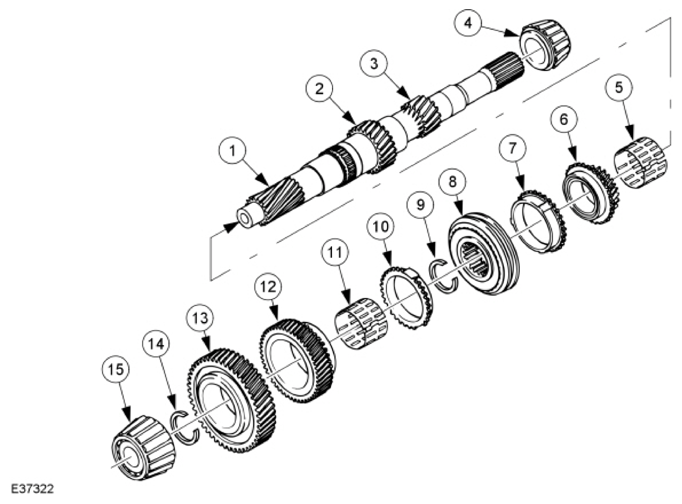

Input Shaft
| Item | Description |
|---|---|
| 1 | Input shaft |
| 2 | Teeth - 2nd gear |
| 3 | Teeth - 1st gear |
| 4 | Tapered roller bearing (clutch side) |
| 5 | Needle roller bearing - 3rd gear |
| 6 | Gear wheel - 3rd gear |
| 7 | Synchronizer ring - 3rd gear |
| 8 | 3rd/4th gear synchronizer assembly |
| 9 | Snap ring |
| 10 | Synchronizer ring - 4th gear |
| 11 | Needle roller bearing - 4th gear |
| 12 | Gear wheel - 4th gear |
| 13 | Gear wheel - 5th gear |
| 14 | Snap ring |
| 15 | Tapered roller bearing (transaxle side) |
The input shaft is the main shaft splined to the clutch disc and turns the gears in the transmission.
The gears on the input shaft mesh with the output shaft gears and provide torque from the engine to the differential.
The input shaft has two tapered roller bearings. Input shaft end play is controlled by a selective shim located under the bearing cup.
