Camshaft Position (CMP) Sensor
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

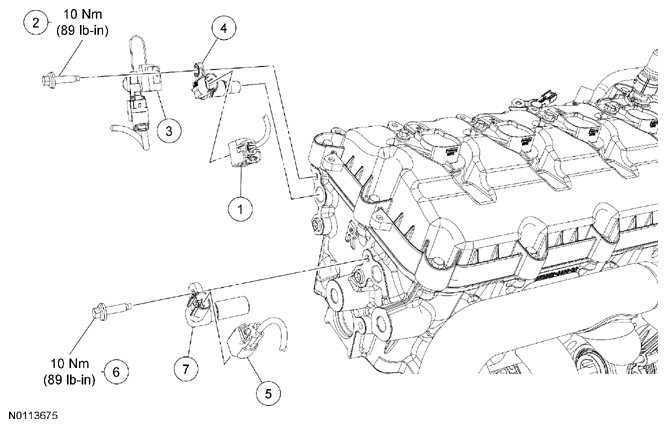

RH shown in illustation, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH intake Camshaft Position (CMP) sensor electrical connector (part of 12A581) |
| 2 | W503277 | RH intake CMP sensor bolt |
| 3 | 18801 | Radio ignition interference capacitor |
| 4 | 6B288 | RH intake CMP sensor |
| 5 | - | RH exhaust CMP sensor electrical connector (part of 12A581) |
| 6 | W503277 | RH exhaust CMP sensor bolt |
| 7 | 6B288 | RH exhaust CMP sensor |
