Fuel System Monitor

The adaptive fuel strategy uses O2 sensors for fuel feedback. The fuel equation includes short and long term fuel trim modifiers:

FUEL MASS = AIR MASS * SHRTFT * LONGFT EQUIV_RATIO * 14.64

Where:

A conventional O2 sensor (not a wide-range sensor) can only indicate if the mixture is richer or leaner than stoichiometric. During closed loop operation, short term fuel trim values are calculated by the PCM using oxygen sensor inputs in order to maintain a stoichiometric air/fuel ratio. The PCM is constantly making adjustments to the short term fuel trim, which causes the oxygen sensor voltage to switch from rich to lean around the stoichiometric point. As long as the short term fuel trim is able to cause the oxygen sensor voltage to switch, a stoichiometric air/fuel ratio is maintained.

When initially entering closed loop fuel, SHRTFT starts 1.0 and begins adding or subtracting fuel in order to make the oxygen sensor switch from its current state. If the oxygen sensor signal sent to the PCM is greater than 0.45 volts, the PCM considers the mixture rich and SHRTFT shortens the injector pulse width. When the cylinder fires using the new injector pulse width, the exhaust contains more oxygen. Now when the exhaust passes the oxygen sensor, it causes the voltage to switch below 0.45 volts, the PCM considers the mixture lean, and SHRTFT lengthens the injector pulse width. This cycle continues as long as the fuel system is in closed loop operation.

Fig 1: Mode $06 Data Oxygen Sensor Voltage and Short Term Fuel Trim (1 of 2)
G00574730Courtesy of FORD MOTOR CO.
Fig 2: Mode $06 Data Oxygen Sensor Voltage and Short Term Fuel Trim (2 of 2)
G00574731Courtesy of FORD MOTOR CO.
NOTE: As fuel, air, or engine components age or otherwise change over the life of the vehicle, the adaptive fuel strategy learns deviations from stoichiometry while running in closed loop fuel. Corrections are only learned during closed loop operation, and are stored in the PCM as long term fuel trim values (LONGFT). They may be stored into an 8x10 rpm/load table or they may be stored as a function of air mass. LONGFT values are only learned when SHRTFT values cause the oxygen sensor to switch. If the average SHRTFT value remains above or below stoichiometry, the PCM "learns" a new LONGFT value, which allows the SHRTFT value to return to an average value near 1.0. LONGFT values are stored in Keep Alive Memory as a function of air mass. The LONGFT value displayed on the scan tool is the value being used for the current operating condition.
Fig 3: Mode $06 Data Short and Long Term Fuel Trim Values
G00574732Courtesy of FORD MOTOR CO.

As components continue to change beyond normal limits or if a malfunction occurs, the long-term fuel trim values will reach a calibratable rich or lean limit where the adaptive fuel strategy is no longer allowed to compensate for additional fuel system changes. Long term fuel trim corrections at their limits, in conjunction with a calibratable deviation in short term fuel trim, indicate a rich or lean fuel system malfunction.

NOTE:

Note that in the PCM, both long and short-term fuel trim are multipliers in the fuel pulse width equation. Scan tools normally display fuel trim as percent adders. If there were no correction required, a scan tool would display 0% even though the PCM was actually using a multiplier of 1.0 in the fuel pulse width equation.

Fig 4: Mode $06 Data Fuel System Monitor
G00574733Courtesy of FORD MOTOR CO.
FUEL MONITOR OPERATION:

DTCs P0171 Bank 1 Lean, P0174 Bank 2 Lean
P0172 Bank 1 Rich, P0175 Bank 2 Rich
Monitor execution continuous while in closed loop fuel
Monitor Sequence none
Sensors OK Fuel Rail Pressure (if available), IAT, CHT/ECT, MAF, TP
Monitoring Duration 2 seconds to register malfunction
TYPICAL FUEL MONITOR ENTRY CONDITIONS:

Entry Condition  Minimum  Maximum
Engine Coolant Temp 150 °F 250 °F
Engine Load 12%
Intake Air Temp -30% °F 150 °F
Air Mass Range 0.75 lb/min
Purge Duty Cycle 0% 0%
TYPICAL FUEL MONITOR MALFUNCTION THRESHOLDS:

Long Term Fuel Trim correction cell currently being utilized in conjunction with Short Term Fuel Trim:
Lean malfunction: LONGFT > 25%, SHRTFT > 5%
Rich malfunction: LONGFT < 25%, SHRTFT < 5%

FAOSC (Rear Fuel Trim) Monitor

As the front UEGO sensor ages and gets exposed to contaminants, it can develop a rich or lean bias in its transfer function. The rear bias control (also called FAOSC - Fore/Aft Oxygen Sensor Control) system is designed to compensate for any of these bias shifts (offsets) using the downstream HO2S sensor. The "FAOS" monitor looks for any bias shifts at the stoichiometric point of the front UEGO sensor lambda curve. If the UEGO has developed a bias beyond the point for which it can be compensated for, lean (P2096, P2098) or rich (P2097, P2099) fault codes will be set.

UEGO "FAOS MONITOR" OPERATION:

DTCs P2096 - Post catalyst fuel trim system too lean (Bank 1)
P2097 - Post catalyst fuel trim system too rich (Bank 1)
P2098 - Post catalyst fuel trim system too lean (Bank 2)
P2099 - Post catalyst fuel trim system too rich (Bank 2)
Monitor execution Continuous while in closed loop fuel
Monitor Sequence > 30 seconds time in lack of movement test, > 30 seconds time in lack of switch test
Sensors OK ECT, IAT, MAF, MAP, VSS, TP, ETC, FRP, FVR, DPFE EGR, VCT, VMV/EVMV, CVS, CPV, EVAPSV, FTP, CKP, CMP, ignition coils, injectors, no misfire DTCs, no system failures affecting fuel, no EVAP gross leak failure, UEGO heaters OK, rear HO2S heaters OK, no "lack of switching" malfunction, no "lack of movement" malfunction, no UEGO circuit malfunction, no rear stream 2 HO2S circuit malfunction, no rear stream 2 HO2S functional DTCs, no rear stream 2 HO2S response rate malfunction.
Monitoring Duration 5 seconds to register a malfunction
TYPICAL UEGO "FAOS MONITOR" ENTRY CONDITIONS:

Entry Conditions  Minimum  Maximum
Closed loop stoich fuel control
Time since engine start 20 seconds
Engine Coolant Temp 160 °F 250 °F
Time since entering closed loop fuel 20 seconds
Fuel Level 15%
Short Term Fuel Trim Range -13% 18%
Air mass range 2 lbm/min 8 lbm/min
Learning conditions stability time (based on air mass) 15 seconds
Injector fuel pulse width (not at minimum clip) 650 usec
Inferred HO2S 2 Heated Tip Temperature 1100 °F
No excessive movement between currently utilized long term fuel trim cells (1 = complete change from one cell to adjacent cell)   0.5
UEGO sensor within +/- 2 % from the fuel control target
UEGO ASIC not in recalibration mode
Stream1 UEGO response test not running
Intrusive UEGO catalyst monitor not running
Not performing intrusive UEGO Lack-of-Movement fuel control defib
No air passing through during valve overlap (scavenging).
Battery Voltage 11.0 Volts 18.0 Volts
TYPICAL UEGO "FAOS MONITOR" MALFUNCTION THRESHOLDS:

>= 5 seconds since reaching the FAOSC lean or rich limits while system bias maturity is met.
Lean malfunction: -0.083 rear bias trim limit
Rich malfunction: 0.087 rear bias trim limit

Air Fuel Ratio Imbalance Monitor

The Air Fuel Imbalance Monitor is designed to monitor the cylinder-to-cylinder air fuel imbalance per engine bank. When an Air Fuel (A/F) imbalance is present, the front UEGO signal becomes noisier. The monitor uses the high frequency component from the UEGO signal as an indicator of A/F imbalance. "Hash" is the difference between two consecutive front UEGO voltage samples. The UEGO signal is monitored continuously and a differential or "hash" value is continuously calculated. When the hash is below a threshold, it is indicative of normal operation. If the hash exceeds the threshold, an A/F imbalance is assumed which increments a hash error counter. The counter accumulates hash during series of calibratable rpm windows. Typically, a single window consists of 50 engine revolutions. A total rpm window counter calculates number of completed rpm windows. Monitor completion typically requires 30 rpm windows. When the monitor completes, an A/Fuel imbalance index is calculated. The monitor index is defined as the ratio of the failed rpm windows over the total rpm windows required to complete monitor. If the monitor imbalance ratio index exceeds the threshold value, an A/F imbalance DTC is set.

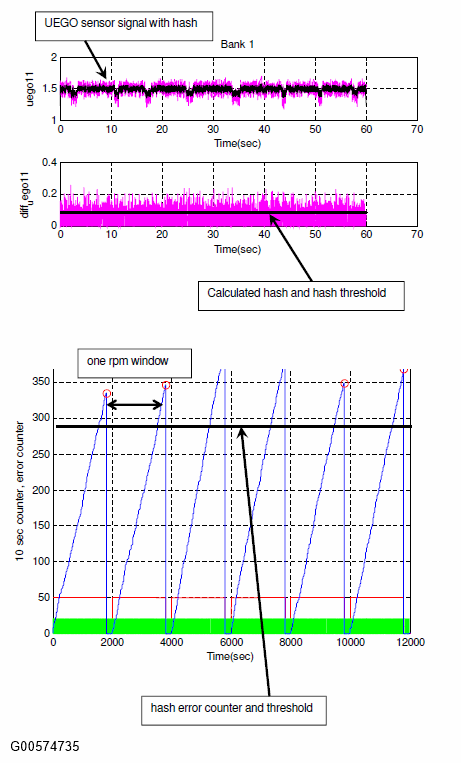

Fig 5: Mode $06 Data Air Fuel Ratio Imbalance Monitor (1 of 2)
G00574734Courtesy of FORD MOTOR CO.

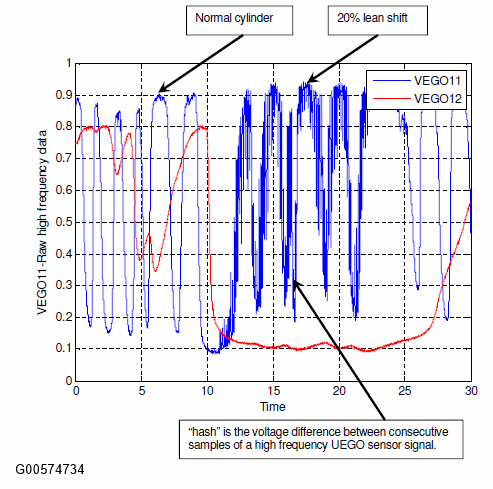

Fig 6: Mode $06 Data Air Fuel Ratio Imbalance Monitor (2 of 2)
G00574735Courtesy of FORD MOTOR CO.
AIR FUEL RATIO IMBALANCE OPERATION

DTCs P219A - Bank 1 Air-Fuel Ratio Imbalance
P219B - Bank 2 Air-Fuel Ratio Imbalance
Monitor execution Once per driving cycle during closed loop
Monitor Sequence Monitor runs after fuel monitor has adapted
Sensors OK ECT, IAT, MAF, VSS, TP, ETC, FRP, DPFE EGR, VCT, VMV/EVMV, CVS, FTP, CKP, CMP, ignition coils, injectors, no misfire DTCs, no system failures affecting fuel, no EVAP gross leak failure, UEGO heaters OK, rear HO2S heaters OK, no "lack of switching" malfunction, no "lack of movement" malfunction, no UEGO circuit malfunction, no rear stream 2 HO2S circuit malfunction, no rear stream 2 HO2S functional DTCs, no rear stream 2 HO2S response rate malfunction.
Monitoring Duration Time to complete monitor ranges from 300 to 700 seconds
AIR FUEL RATIO IMBALANCE ENTRY CONDITIONS:

Entry Condition  Minimum  Maximum
Closed Loop Fuel Control
Engine Air Mass 2 lb/min 10 lb/min
Engine RPM 1250 rpm 3000 rpm
Engine Load 40% 70%
Engine Coolant Temp 150 °F 250 °F
Intake Air Temp 20 °F 150 °F
Throttle Position Rate of Change   0.122 v/100 msec
Fuel percentage from purge   40%
Fuel Level 15%
Fuel monitor has adapted
No purge on/off transition
Fuel type leaning is complete (FFV only)
AIR FUEL RATIO IMBALANCE MALFUNCTION THRESHOLDS:

Imbalance Ratio Bank 1 >.75
Imbalance Ratio Bank 2 >.75
J1979 AFIMN MONITOR MODE $06 DATA

Monitor ID  Test ID  Description
$81 $80 Bank 1 imbalance-ratio and max. limit (P219A/P219B) unitless
$82 $80 Bank 2 imbalance-ratio and max. limit (P219A/P219B) unitless
