Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the PMI  routine.

    Use the General Equipment: Ford Diagnostic Equipment

  3. Remove the LH  front fender splash shield.

    Refer to: FENDER SPLASH SHIELD .

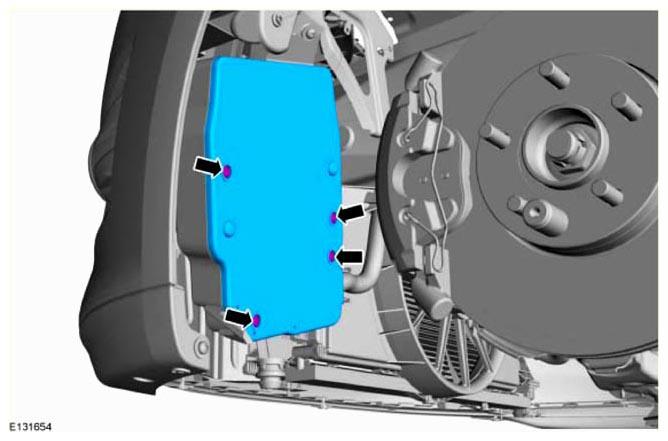

  4. G08056300

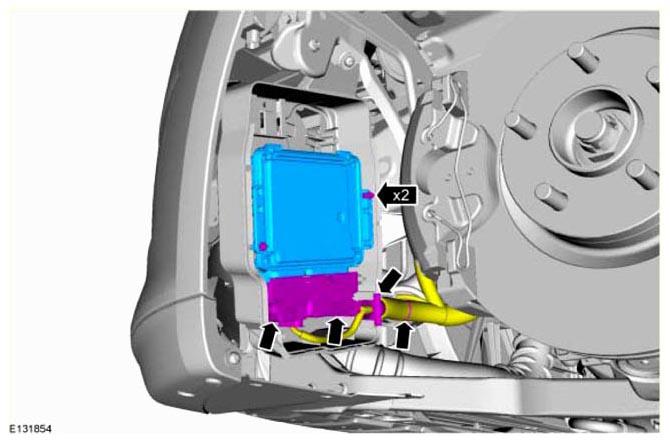

  5. G08056301
