Fuel Pump Driver Module (FPDM): Removal

Vehicles with rear bench seat

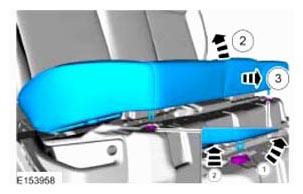

1. NOTE: When installing the seat cushion, press firmly downward until an audible click is heard.

   Vehicles with split rear seat backrest

2. Position the RH  front seat all of the way forward.
3. Raise the RH  rear seat cushion and fold forward.
5. Remove the RH  Outboard safety belt lower anchor bolt.

   Torque  : 30 lb.ft (40 Nm)

   All vehicles

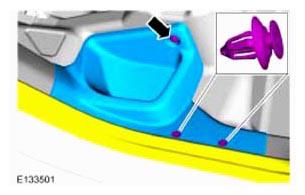

6. NOTE: The FPDM  is held in place with an adhesive backing.
