Upfitter Relay Box: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

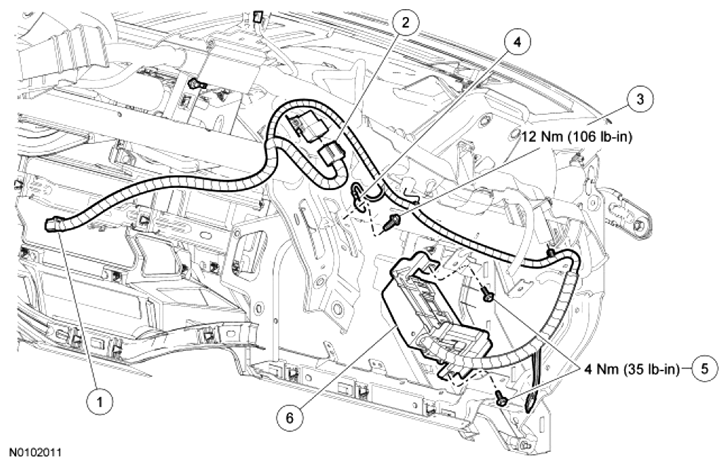

Fig 1: Exploded View Of Upfitter Relay Box With Torque Specifications
G06780586Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Upfitter switch electrical connector (part of 14A303)
2 - Upfitter relay harness in-line connector to 14401 harness (part of 14A303)
3 W706287-S437M Upfitter relay harness ground terminal screw
4 - Upfitter relay harness ground terminal (part of 14A303)
5 W503915-S436 Upfitter relay box screws (2 required)
6 14A303 Upfitter relay box and harness assembly
