WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

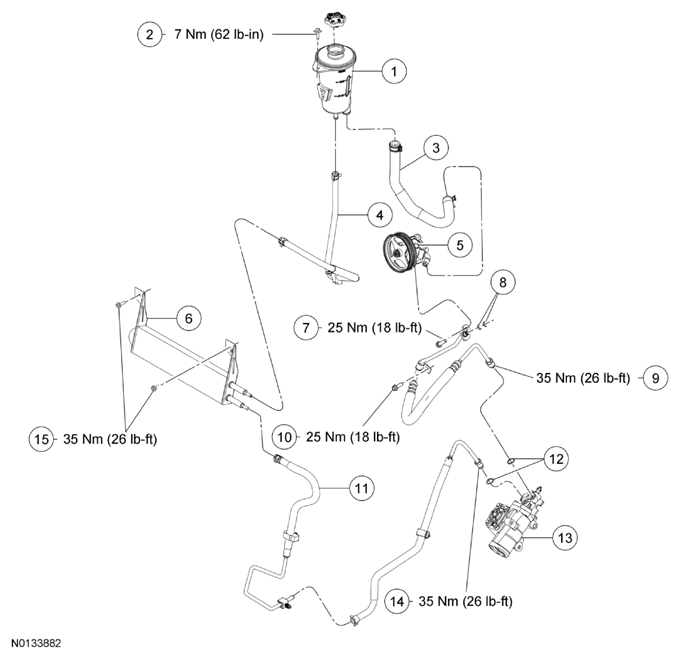

| Item | Part Number | Description |
|---|---|---|
| 1 | 3E764 | Power steering fluid reservoir |
| 2 | W503924 | Power steering fluid reservoir bolt |
| 3 | 3691 | Supply hose |
| 4 | 3A713 | Fluid cooler-to-reservoir return hose |
| 5 | 3A696 | Power steering pump and pulley assembly |
| 6 | 3D746 | Power steering fluid cooler |
| 7 | W714824 | Pressure line clamp plate bolt |
| 8 | - | O-ring seals (2 required) (part of 3A719) |
| 9 | - | Pressure line-to-steering gear fitting (part of 3A719) |
| 10 | W704310 | Pressure line bracket bolt |
| 11 | 3A713 | Fluid cooler return-to-steering gear return hose |
| 12 | N803257 | O-ring seal |
| 13 | 3504 | Steering gear |
| 14 | - | Return hose-to-steering gear fitting (part of 3A713) |
| 15 | W711851 | Power steering fluid cooler bolt (2 required) |

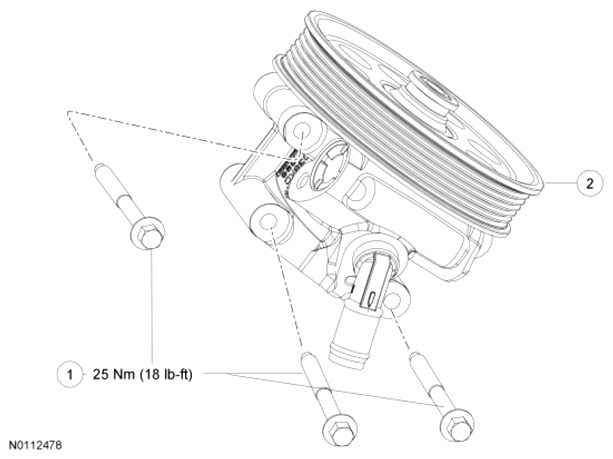

NOTE:
6.2L and 6.8L pump shown, 6.7L similar
| Item | Part Number | Description |
|---|---|---|
| 1 | W715068 | Power steering pump bolts (6.7L and 6.2L) (3 required) |
| 1 | W706447 | Power steering pump bolts (6.8L) (3 required) |
| 2 | 3A696 | Power steering pump and pulley assembly |
