Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the airbags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.

WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy and cause serious personal injury or death.

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

When installing a new RCM, carry out the appropriate steps necessary for the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION .
Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
Access the RCM.
- Remove the 20 percent seat, if equipped. For additional information, refer to the removal and installation portion of SEATING .
- Remove the floor console, if equipped. For additional information, refer to the removal and installation portion of INSTRUMENT PANEL AND CONSOLE .
- Remove the floor consolette, if equipped.
NOTE: To avoid damage to the wiring harnesse(s) underneath, lift the carpet before cutting between the perforations. Failure to follow this instruction may result in component damage and/or system failure.

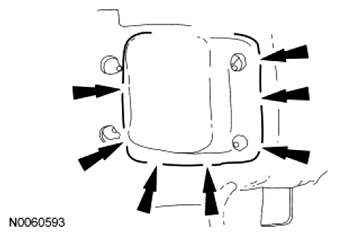

If equipped, position the carpet aside:
- Reach through the perforations and lift the carpet.
- Cut between the perforations in the carpeting as shown in the illustration.
- Fold back the carpet flap to gain access to the RCM.

  Fig 1: Locating Carpet Cutting Positions
  Courtesy of FORD MOTOR CO.

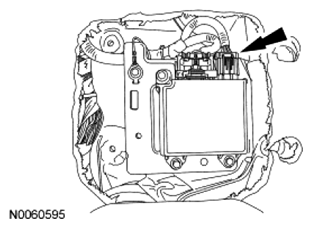

Press to release the locking tab and disconnect the small RCM electrical connector.

Fig 2: Locating Small RCM Electrical Connector
Courtesy of FORD MOTOR CO.

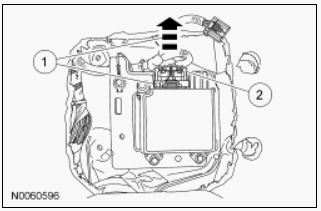

Disconnect the large RCM electrical connector.
1. Pinch the thumb tab and pivot the Connector Position Assurance (CPA) lever all the way back until it stops.
2. Pull out and disconnect the RCM electrical connector.

  Fig 3: Disconnecting RCM Electrical Connector
  Courtesy of FORD MOTOR CO.
Remove the 3 bolts and the RCM.
