Wiper System

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

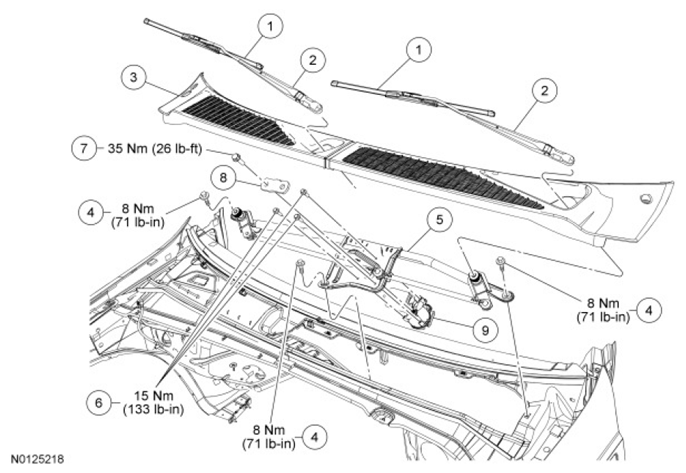

Fig 1: Exploded View Of Wiper System With Torque Specifications
G07486191Courtesy of FORD MOTOR CO.
Item Part Number Description
1 17528 Wiper blades
2 17526 RH/17527 LH Wiper pivot arms
3 022A68 RH/022A69 LH Cowl grille panel
4 W703845 Wiper mounting arm and pivot shaft bolts (3 required)
5 17566 Wiper mounting arm and pivot shaft
6 - Wiper motor bolts (part of 17566) (3 required)
7 W707014 Wiper motor crank arm bolt (part of 17566)
8 - Wiper motor crank arm (part of 17566)
9 17508 Wiper motor
