Terminal Not Properly Seated

WARNING: This page is about a different variant/trim than selected.
  1. Locked terminal
  2. Male half
  3. Female half
  4. Seal
  5. Intermittent contact
  6. Unlocked terminal (Hidden by wire seal)
  7. Seal

Check for unlocked terminals by pulling each wire at the end of the connector.

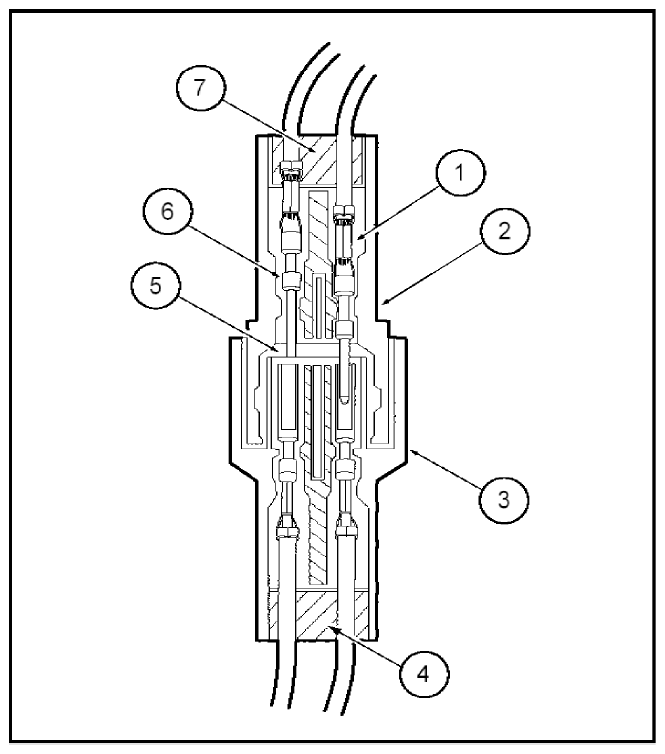

Fig 1: Cross Sectional View Of Connector
G09260731Courtesy of FORD MOTOR CO.
