Section 14 (Module Communications Network -- (Except Hybrid))
>>
Description And Operation
>>
Communications Network - System Operation and Component Description
>>
System Operation
>>

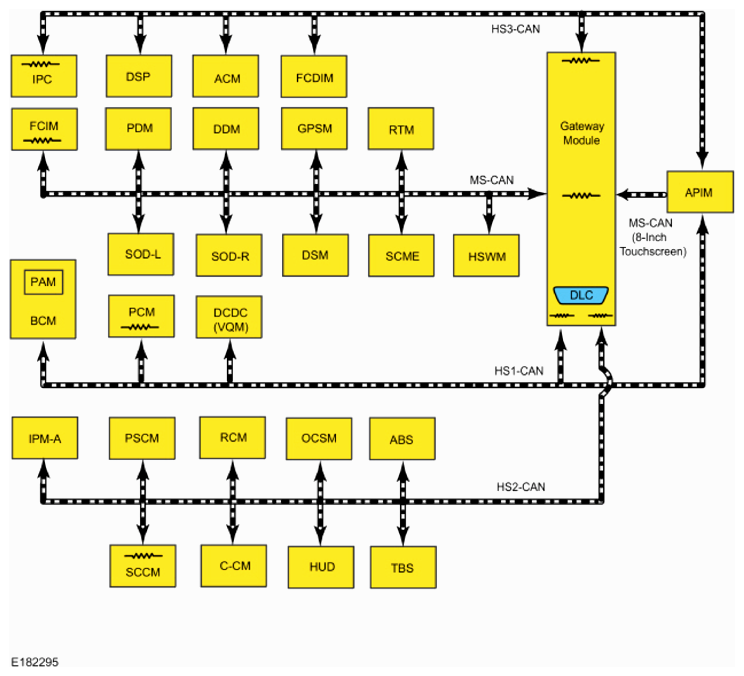

System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram
WARNING:
This page is about a different variant/trim than selected.
