Cruise Control Module (CCM): Installation

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Cruise control module bracket

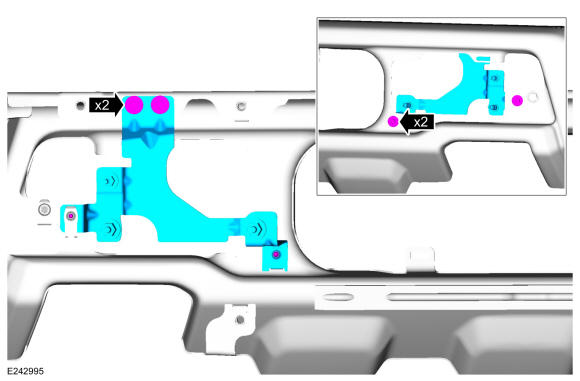

Install the front and rear bolts and the CCM bracket.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

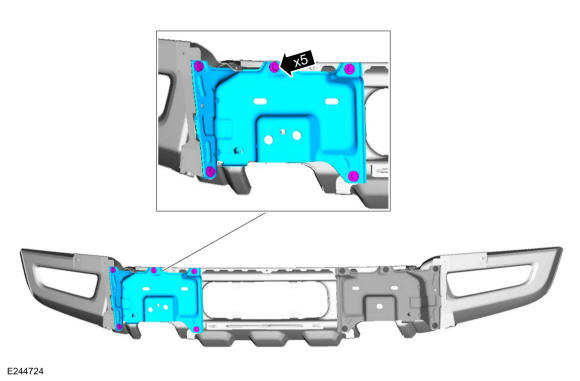

Install the bolts and the front bumper bracket.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

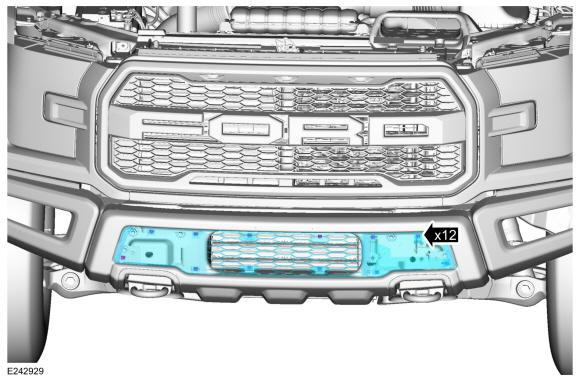

Install the front bumper. Refer to: Front Bumper - Raptor .
Cruise control module
NOTE: Replace any damaged CCM ball studs.

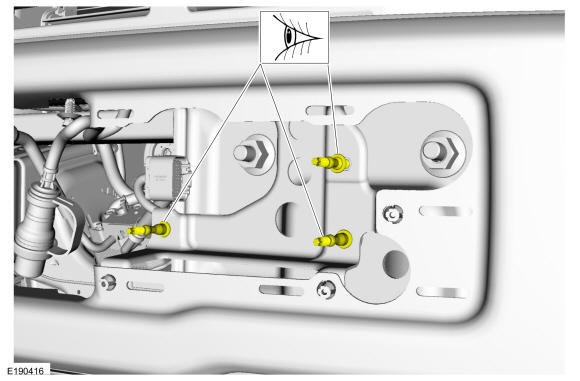

Inspect the CCM ball studs for damage.

Courtesy of FORD MOTOR COMPANY
NOTE: Replace any damaged CCM grommets.

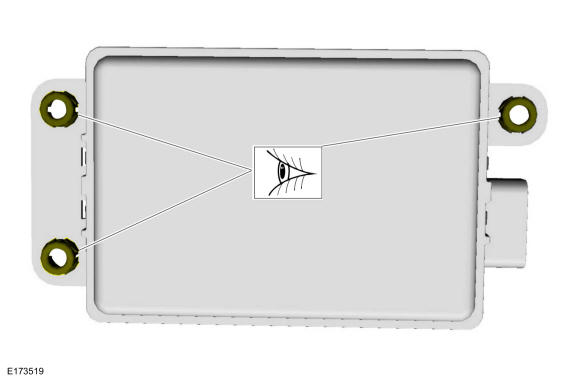

Inspect the CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

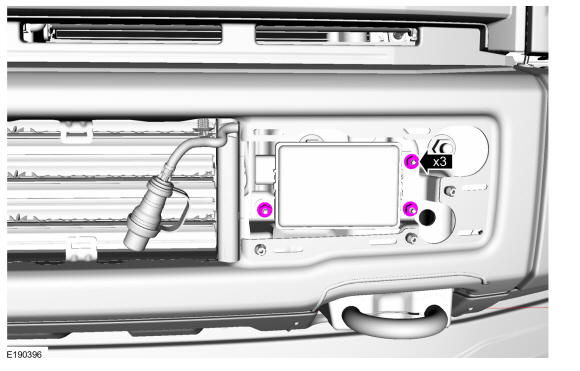

Install the CCM.
- NOTE: Do not seat the grommets, they will be seated when the nuts are installed and torqued.

  Position the CCM grommets on the ball studs.

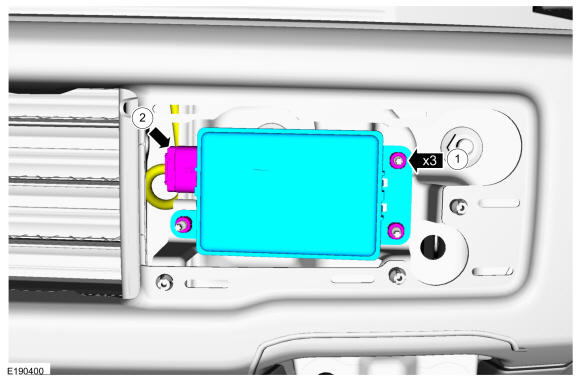

- Connect the CCM electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the CCM nuts.
Torque: 9 lb.in (1 Nm)

Courtesy of FORD MOTOR COMPANY

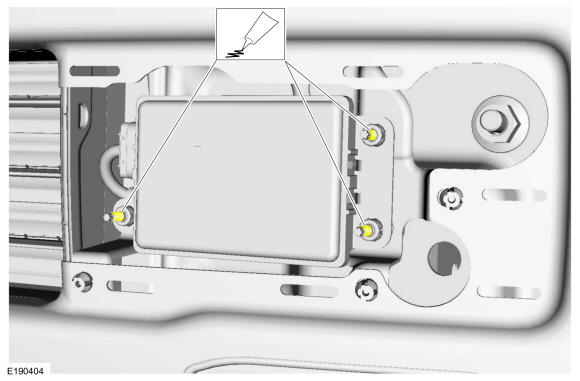

Apply thread locker to the CCM ball stud threads.
Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the CCM following the on-screen instructions.
Install the front bumper trim panel.

Courtesy of FORD MOTOR COMPANY
