Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  3. Remove the remove the both side of band (B) of the dynamic damper (A).

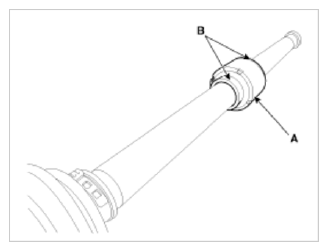

    Fig 1: Identifying Band Of Dynamic Damper
    G09886341Courtesy of HYUNDAI MOTOR AMERICA
  4. Fix the driveshaft (A) with a vice (B) as illustrated.

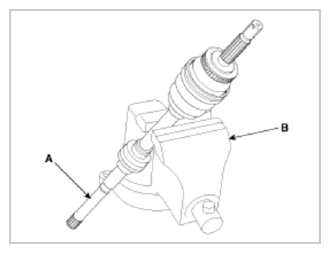

    Fig 2: Fixing Driveshaft With Vice
    G09886342Courtesy of HYUNDAI MOTOR AMERICA
  5. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.
  6. Separate the dynamic damper (A) from the shaft (B) carefully.

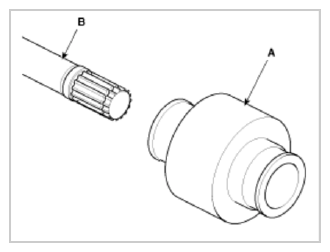

    Fig 3: Disconnecting Dynamic Damper From Shaft
    G09886343Courtesy of HYUNDAI MOTOR AMERICA
