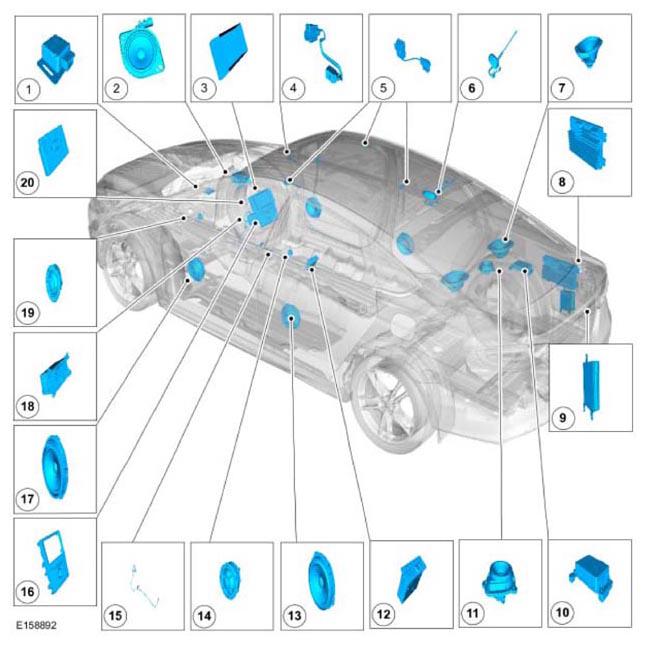

Information and Entertainment System - Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | GPSM |
| 2 | Speaker - instrument panel |
| 3 | FDIM |
| 4 | SYNC microphone |
| 5 | Active noise control microphones - HEV |
| 6 | Antenna |
| 7 | Speaker - subwoofer |
| 8 | Audio DSP Module |
| 9 | DACMC - HEV |
| 10 | TCU - PHEV |
| 11 | Speaker - parcel shelf |
| 12 | Media hub |
| 13 | Speaker - rear door |
| 14 | Speaker - rear door tweeter |
| 15 | USB cables |
| 16 | FCIM |
| 17 | Speaker - front door |
| 18 | ACM |
| 19 | Speaker - front door tweeter |
| 20 | APIM |
