SYNC Module [APIM]: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION -- (HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: HEALTH AND SAFETY PRECAUTIONS .
- Remove the FDIM
.
Refer to: FRONT DISPLAY INTERFACE MODULE (FDIM) .

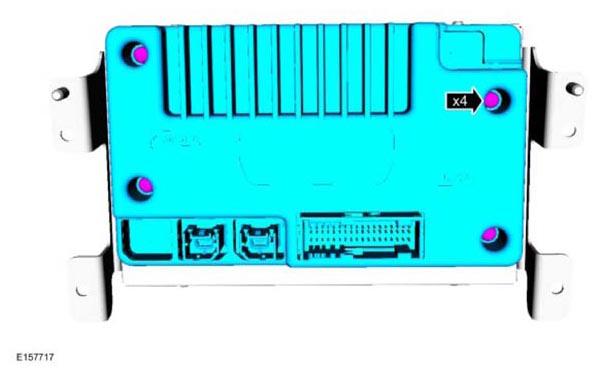

- Torque:
9 lb.in (1 Nm)
