Telematics Control Unit Module (TCUM): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION -- (HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: HEALTH AND SAFETY PRECAUTIONS .
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Upload the TCU configuration information to the scan tool by following the scan tool on-screen instructions.
- Remove the parcel shelf.
Refer to: PARCEL SHELF .

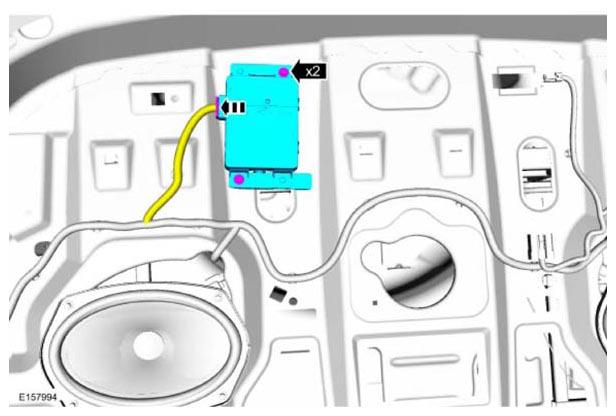

- Torque:
44 lb.in (5 Nm)
