Pump Assembly: Notes
SPECIAL TOOL DESCRIPTION
| Installer, Fluid Pump Seal 307-556 |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) |
MERCON® LV |

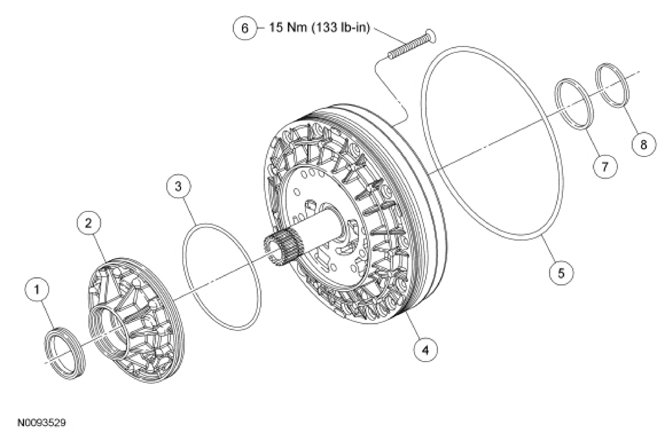

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A248 | Front pump oil seal |
| 2 | - | Pump body (part of 7A103) |
| 3 | 7A248C | Pump body seal |
| 4 | 7A103 | Pump plate assembly |
| 5 | 7A248A | Pump plate assembly seal |
| 6 | W707871-S300 | Pump plate assembly-to-front pump body bolt (11 required) |
| 7 | 7D019 | Clutch support fluid seal |
| 8 | 7L323 | Front pump support seal |
