EGR System Module Connector End View (C1450)

Fig 1: Identifying EGR System Module Connector (C1450)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CE133 (VT-WH)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC VACUUM REGULATOR (EVR)
2	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)
3	LE329 (BU)	18	CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP)
4	CBK02 (GN)	18	FUSE - 49 OR CIRCUIT BREAKER
5	VE713 (GN-OG)	18	SENSOR - DELTA PRESSURE FEEDBACK EGR (DPFE)
6	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

Available Pigtail Kits

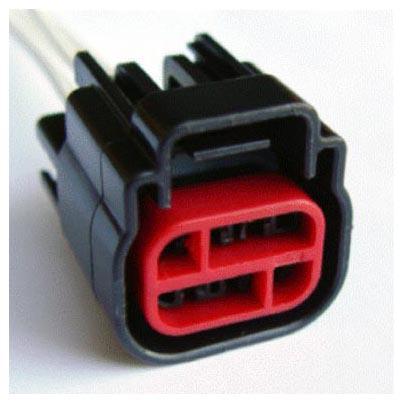

Pigtail Kit Part Number WPT-435	Service Part Number: 3U2Z-14S411-MKA Gauge: 18 Pin material: Gold Cavities: 6 Vehicle Uses Module - EGR System Sensor - Delta Pressure Feedback EGR

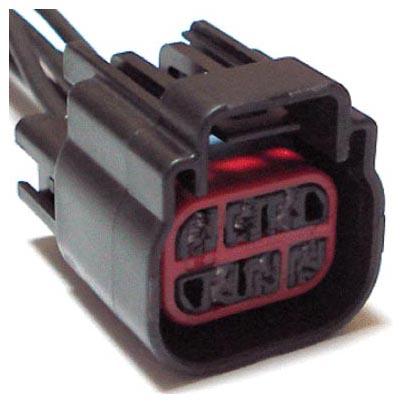

Pigtail Kit Part Number WPT-436	Service Part Number: 3U2Z-14S411-MLA Gauge: 18 Pin material: Tin Cavities: 6 Vehicle Uses Module - EGR System Sensor - Manifold Absolute Pressure (MAP)

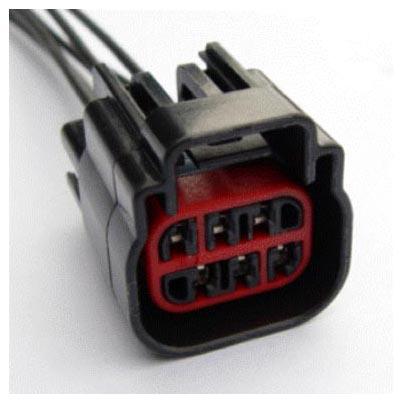

Pigtail Kit Part Number WPT-978	Service Part Number: 3U2Z-14S411-MLB Gauge: 14 Pin material: Tin (greased) Cavities: 6 Vehicle Uses Module - EGR System Sensor - Delta Pressure Feedback EGR Sensor - Manifold Absolute Pressure (MAP)
