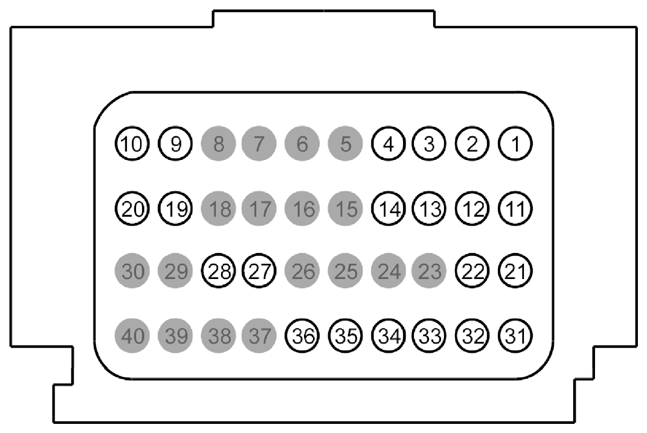

Restraints Control Module (RCM) Connector End View (C2041B)

Fig 1: Identifying Restraints Control Module Connector (C2041B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR105 (GY-YE)	18	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE
2	CR105 (GN-BU)	18	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE
3	CR120 (BU-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE
4	RR120 (BN-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
10	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
11	RR106 (YE-OG)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE OUTBOARD
12	CR106 (VT-GY)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER SIDE OUTBOARD
13	CR122 (WH-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD
14	RR122 (BN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	VCA24 (GN-OG)	22	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW
20	VCA23 (BU-WH)	22	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH
21	RR132 (BU-WH)	22	CTRL MOD. - SENSOR SIDE IMPACT FRONT RIGHT SIDE
22	VR218 (YE-OG)	22	SENSOR - SIDE IMPACT FRONT RIGHT SIDE
23	*	*	Not Used
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
27	VR213 (VT-GN)	22	SENSOR - IMPACT FRONT 1ST OR LEFT
28	RR129 (YE-GY)	22	CTRL MOD. - SENSOR IMPACT FRONT 1ST OR LEFT
29	*	*	Not Used
30	*	*	Not Used
31	VR216 (GN-OG)	22	SENSOR - SEAT TRACK POSITION PASSENGER
32	VR215 (YE-VT)	22	SENSOR - SEAT TRACK POSITION DRIVER
33	CR203 (GY-VT)	22	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD
34	CR201 (GN-BU)	22	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE
35	RR131 (VT-GY)	22	CTRL MOD. - SENSOR SIDE IMPACT FRONT LEFT SIDE
36	VR217 (GY-YE)	22	SENSOR - SIDE IMPACT FRONT LEFT SIDE
37	*	*	Not Used
38	*	*	Not Used
39	*	*	Not Used
40	*	*	Not Used
