OEM Ground Distribution: Grounds: Convertible

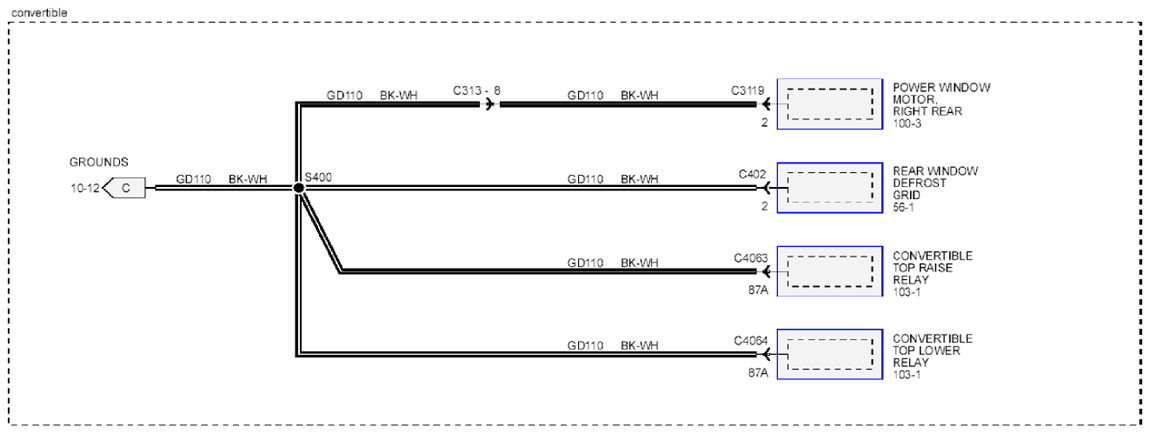

Fig 1: Grounds - Wiring Diagram (Convertible)
G09283098Courtesy of FORD MOTOR CO.
