OEM Ground Distribution: Grounds: Notes

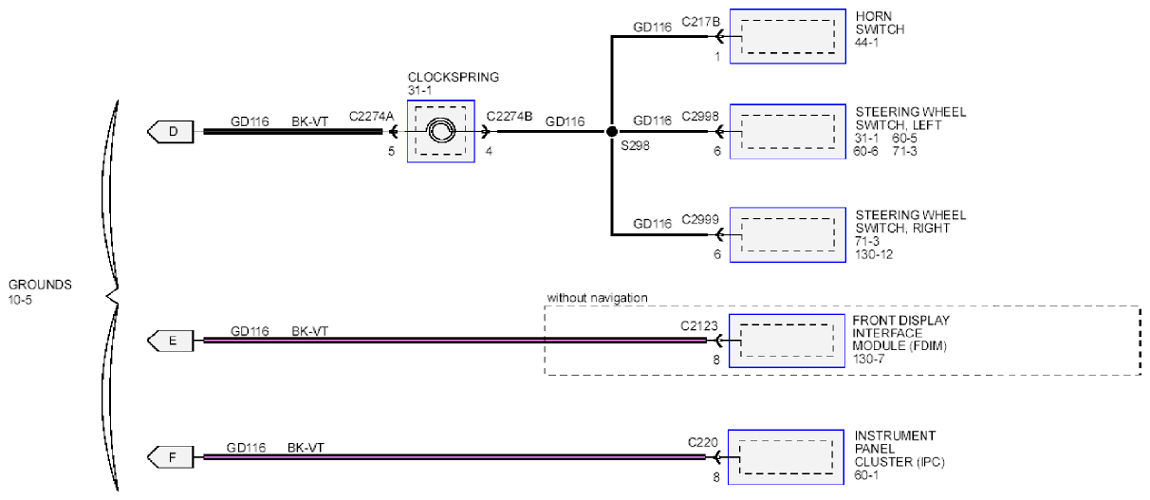

Fig 1: Grounds - Wiring Diagram (1 Of 2)
G09283091Courtesy of FORD MOTOR CO.

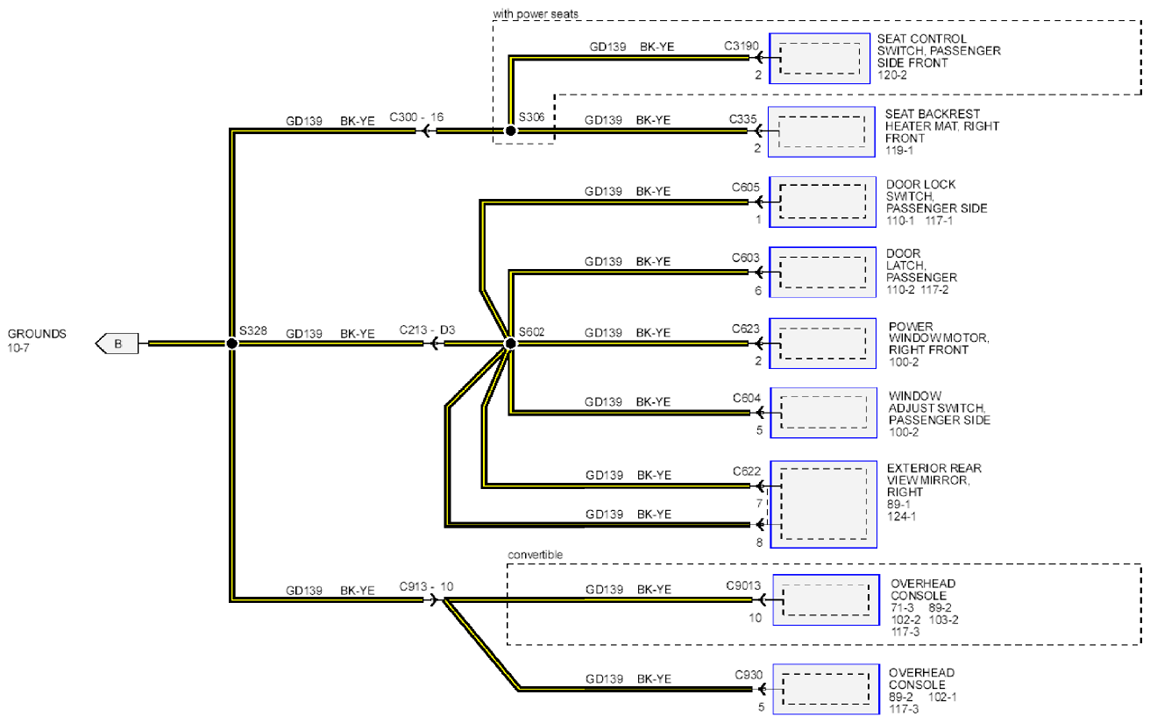

Fig 2: Grounds - Wiring Diagram (2 Of 2)
G09283093Courtesy of FORD MOTOR CO.
