Spring Lock Couplings: Connect

Align and push the spring lock coupling onto the tube fitting until fully seated.

Fig 1: Pushing Spring Lock Coupling Onto Tube Fitting
Courtesy of FORD MOTOR CO.
Pull on the coupling to make sure it is fully engaged.
If equipped, install the fuel tube safety clip.

Fig 2: Installing Fuel Tube Safety Clip
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

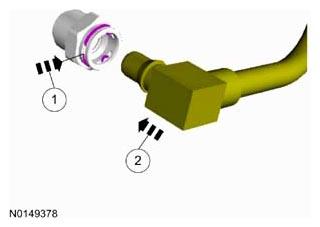

1. Insert the spring clip into the coupling.
2. Align and push the tube fitting into the coupling until fully seated.
Pull on the line to make sure that it is fully engaged.
